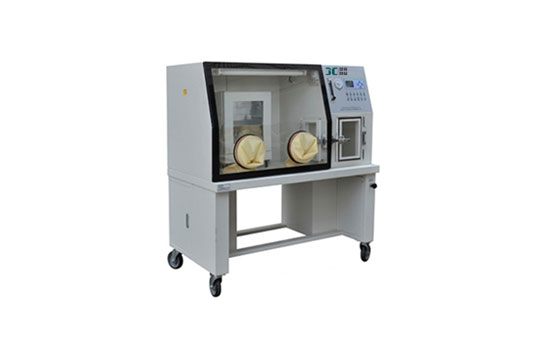

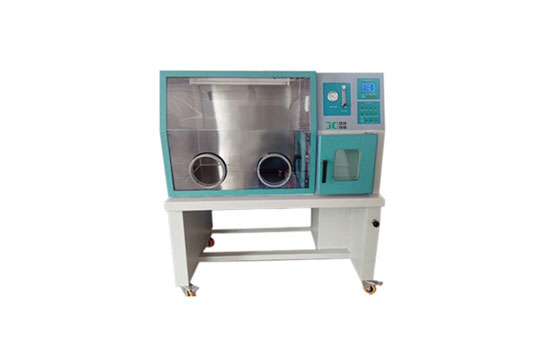

Product name：JC-QX-II/JC-QX-I anaerobic incubator -
Order number： -
Model：JC-QX-II -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
Anaerobic incubator is also called anaerobic workstation or anaerobic glove box. Anaerobic incubator is a special device for fine culture and operation under anaerobic conditions. It can provide strict anaerobic constant temperature culture conditions and a systematic and scientific working area. Mainly used for third-party testing and other testing institutions, universities, research institutes and other research institutions.
2. Product parameters
one. Scope of application:
(1) Temperature range of incubation chamber
Room temperature +3°C to 60°C.
(2) Temperature uniformity
≤±1℃
(3) Temperature fluctuation
≤±0.3℃
(4) Anaerobic grade
Oxygen content≤1%
(5) Time for the sampling chamber to form an anaerobic state
≤5 minutes
(6) The sampling chamber forms an anaerobic way
Vacuum + gas replacement type (99.99% nitrogen or hydrogen 5% carbon dioxide 10% nitrogen 85% mixed gas )
(7) Time for the operation room to form an anaerobic state
≤1 hour
(8) The operating room forms an anaerobic way
Gas replacement type (99.99% nitrogen or a mixture of hydrogen 5% carbon dioxide 10% nitrogen 85% ) + micro flow control
(9) Maintenance time of anaerobic environment in operating room
> 12 hours when the supplement of trace gas mixture is stopped
(10) Anaerobic formation control method
Manual, key operation.
two. Temperature Controller:
Feature Description
(1) Temperature sensor
Temperature: DIN A class Φ 5mm SUS stainless steel PT 100 Ω × 1 piece. Box temperature control × 1.
(2) Temperature control method
PID automatic calculation + Fuzzy control.
(3) Temperature conversion
Adopt microcomputer linear compensation correction.
(4) Display interface
LCD liquid crystal screen display, English display, key input mode.
(5) Timing range
1. 1~9999 minutes; 2. Continuous operation without timing
(6) Humanized operation
a. Automatic control
Temperature electric heating output power adjustment, PID calculus control...etc.
b. Safety self-check
The main system components are self-tested for safety, and the controller will indicate the status and stop heating when an abnormality occurs.
The main function
(1) Temperature display accuracy
0.1℃.
(2) Concentration display accuracy
0.1%.
(3) Temperature control accuracy
±0.1℃.
(4) Concentration control accuracy
±0.1%.
(5) Offset correction
Compensation and correction of temperature deviation value.
(6) I/O self-check
Safety self-check function, automatic power-off protection and fault indication when abnormality occurs .
(7) Automatic calculation
The microcomputer automatically calculates the PID, and cooperates with the solid state relay power control to make the temperature control more accurate (proportional, integral, differential + solid state relay control mode).
(8) Temperature upper and lower limit protection
The upper and lower limits of temperature protection can be set.
(9) Protective device
The controller monitors the safety protection system and preventive fault self-checking control.
three. Structure and material:
(1) Incubator material
SUS-304 stainless steel mirror panel .
(2) The material of the operating room box
SPCC cold-rolled steel sheet electrostatic powder paint treatment .
(3) External material
SPCC cold-rolled steel sheet electrostatic powder paint treatment .
(4) Thermal insulation material
High-density polystyrene foam and ultra-fine fiberglass wool.
(4) Box door
a. Incubator viewing window
Tempered glass windows.
b. Sampling, operating room door
Transparent bulletproof glass.
c. Operating room cover
Clear acrylic.
(5) Movement and support
Move the pulley to adjust the placement position, the front wheel can be locked to fix the position * 4 pieces (200kg/ wheel ).
(6) Shelves
Stainless steel grid shelves × 2; each layer can be adjusted to a height of 50 mm.
Four. Temperature electric heating and circulation:
(1) Air supply method
High impedance motor centrifugal fan. The air supply method is a horizontal air outlet arc circulation design.
(2) Heating system
Microcomputer intelligent automatic control electric heating power balance temperature regulation + temperature self-protection heater.
Fives. Safety protection device:
(1) Circuit breaker
Miniature switch circuit breakers.
(2) Internal protection of the controller
a. Temperature sensor
Open or short circuit (overrange).
b. Over temperature protection
High temperature protection setting for set temperature.
(3) External fault detection protection
a. Thermal protection
Heater temperature self-protector.
(4) Fault abnormal alarm
When the fault occurs abnormally, it will automatically power off the thermal protection and issue an alarm sound.
3. Product Features
1. The temperature control of the incubator adopts a microcomputer intelligent temperature controller, LED digital display, and a temperature limit protection device. It can accurately and intuitively reflect the temperature in the box, and the temperature control is accurate and reliable.
2. The ultraviolet germicidal lamp is installed in the box, and the gas enters the box after filtering, which can effectively avoid fine pollution.
3. The gas circuit device can adjust the flow rate arbitrarily and accurately, and can input various required gases arbitrarily.
4. The front window of the operating room is made of thick and transparent special get off work, which can clearly and directly operate the indoor operation. The operation and use of plastic gloves are reliable, comfortable, flexible, and easy to use.
5. There is a deoxidizing catalyst in the operating room.
6. The whole machine is novel in shape, compact in structure, has the advantages of good anaerobic environment, good sealing performance, high precision of gas detection and temperature control, good stability, convenient use, and safe and reliable work.
