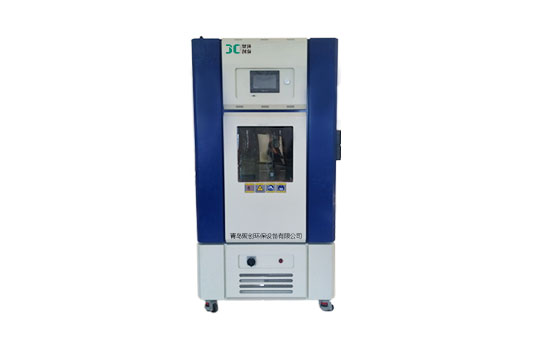

JC-YPA-150 / 250 / 500 / 1000 drug stability test chamber basic type
  • Product name:JC-YPA-150 / 250 / 500 / 1000 drug stability test chamber basic type
  • Order number:
  • Model:JC-YPA-150 / 250 / 500 / 1000
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1Product introduction



    Jc-ypa-150 / 250 / 500 / 1000 drug stability test chamber is an accelerated test, long-term test and high humidity test that creates a drug expiration period evaluation by scientific method and meets the principle of chemical drug stability test. It is a better choice for pharmaceutical enterprises to carry out drug stability test. Drug stability test chamber is used for concentrated research in pharmaceutical industry, medicine, biotechnology, food industry, electronic industry and all related industries including life science.



    Implementation and compliance standards and test methods:



    Manufactured in accordance with relevant provisions of gb10586-2008



    Meet the guiding principles of iec60068-35



    Meet gb-8196-87 safety requirements for protective cover of mechanical design



    Meet gb-52261-2002 safety of machinery electrical equipment of machinery part 1: General technical conditions



    Meet gb-12265-90 safety requirements for mechanical protection



    Meet the GMP (revised in 2015) (Order No. 7 of the Ministry of health of the people's Republic of China)



    Meet the requirements of ich2003q1a (2) 2015 new edition of Chinese Pharmacopoeia



    2Product parameters



    MODEL

    JC-YPA-150

    JC-YPA-250

    JC-YPA-500

    JC-YPA-1000

    WORK SIZE

    460*510*640

    500*550*910

    610*740*1100

    850*925*1250

    Overal size

    960*670*1400

    1020*710*1700

    1200*900*1830

    1400*970*1950

    Power

    1600W

    1800W

    2800W

    3200W

    partition

    2

    3

    3

    4

    Shelf load-bearing

    30Kg

    Bearing capacity of box bottom plate

    400Kg

    Temperature

    0℃—+80℃

    Humidity

    25%—95%R.H

    Temperature fluctuation

    ≤±0.3℃

    Temperature uniformity

    ≤±1℃℃

    Temperature deviation

    ≤±0.5℃

    Instrument setting accuracy

    Temperature 0 1 ℃ humidity 0 1%R.H

    Humidity fluctuation

    ≤±1%R.H

    Humidity deviation

    ±3%R.H %R.H

    heating rate

    ≤0.7~1.0℃/1min (average rate)

    cooling rate

    ≤0.7~1.0℃/1min (average rate)

    Printing function

    Needle micro printer can print temperature and humidity data and curve, record the printing time year, month and day, and the printing cycle is adjustable.

    Temperature and humidity deviation audible and visual alarm function

    In case of temperature and humidity deviation, audible and visual alarm can be carried out, and one key alarm release is available to eliminate the normal alarm when taking samples.

    Data storage

    Equipped with 1 USB2 0 interface, USB flash disk stores data, can record the set value, sampling value, sampling time, test curve, data, operation record, alarm record, etc. of the equipment, and can browse the temperature and humidity curve, operation record and alarm record of each time period in detail. USB2 can be used 0 export, print historical test curve and generate data report (Excel format)

    Password lock

    Password support is required when modifying any information of the instrument

    Meet standard

    Meet the requirements of GMP (revised in 2015) (Order No. 79 of the Ministry of health of the people's Republic of China) and GMP certification

    Door lock

    With lock handle and two keys with lock

    Equipment operation mode

    24-hour continuous operation

    Outer wall material of box

    Cold rolled steel plate (1.5mm thick) produced by Baosteel, with electrostatic spraying treatment on the surface

    Inner wall material of box

    Corrosion resistant SUS304 mirror stainless steel plate (1.2mm thick)

    Observation window

    395×550mm rectangular glass observation window

    Thermal insulation material

    Fine thermal insulation glass wool, insulation layer thickness 70mm

    Lighting device

    The lighting device adopts Philips 18W daylight lighting

    Box seal

    The test box door adopts a special sealing strip silicon rubber sealing strip, which can resist aging, acid and alkali resistance, corrosion resistance, soft and elastic texture, and effectively eliminate temperature and humidity.

    Air conditioning mode

    Forced internal circulation ventilation, adjustable air deflector design, balanced temperature and humidity regulation to ensure uniform temperature field of the test chamber

    Air circulation device

    The stainless steel long shaft motor and two stainless steel multi wing blades are specially made to effectively ensure the reasonable circulation of the built-in air duct in the test chamber. The air duct adopts the internationally popular volute air duct, with large air volume and low temperature and humidity

    Air heating mode

    The non-contact equal periodic pulse width modulation SSR (solid state relay) is used to control the heating output. According to the heating power, the reasonably configured Wing Stainless Steel closed heating tube will not turn red on the surface, with high safety and reliability

    Optional

    IQ (operation confirmation), OQ (operation confirmation), PQ (performance confirmation)



    3Product features



    1. Independent overtemperature protection device



    2. Heater short circuit protection device



    3. Safe and reliable grounding protection



    4. Thermal overload protection of refrigeration compressor



    5. Refrigeration compressor overpressure protection



    6. Water shortage alarm of water supply tank



    7. Water shortage protection of humidifying boiler



    8. Fan thermal overload protection



    9. Humidifier dry burning protection



    10. There is a self-contained water storage tank inside the box, hidden drawer type water filling, independent as a whole, beautiful and generous



    11. The box door has a large viewing angle viewing window



    12. The studio is made of mirror sus304a stainless steel plate, which is acid resistant, corrosion resistant and easy to clean



    13. Anti interference micro needle printer, printing data can be saved for 20 years. Print temperature and humidity data and curve



    Day, time, adjustable printing time and frequency



    14. It has the temperature and humidity deviation alarm function (short-range audible and visual alarm, remote door room alarm, communication mobile phone short message alarm), and has the alarm one key release function (used for drug setting out or sampling)



    15. Coagulated wastewater can be recycled, energy saving and consumption reducing tools can prolong the



    frequency of water addition



    16. The sensor adopts the high polymer temperature and humidity sensor imported from France, which changes the traditional gauze humidity measurement method, and the humidity measurement is accurate without maintenance



    17. With temperature and humidity test verification hole



    18. It can provide special technical services for 3Q verification (IQ installation confirmation, 0q operation confirmation and PQ performance confirmation)
