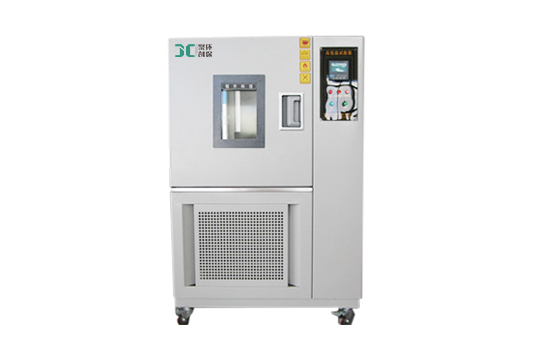

JC-GDS-120C/210C/500C/1000C High and Low Temperature Humidity and Heat Test Chamber Type C
  • Product name:JC-GDS-120C/210C/500C/1000C High and Low Temperature Humidity and Heat Test Chamber Type C
  • Order number:
  • Model:JC-GDS-120C/210C/500C/1000C
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    The equipment is mainly used for high and low temperature and storage tests of electrical, electronic products, instrumentation, materials, and components, and is widely used in aviation, aerospace, telecommunications, instrumentation, materials, electrical, electronic products, Accelerated damp heat test, alternating damp heat test and constant damp heat test for various electronic components and other industries, electrical products, materials, parts, equipment, etc., in order to evaluate their performance under given environmental conditions. Check its performance indicators.
    The equipment is manufactured according to one of the following standards or a combination thereof:
    GB 10589-89 Technical Conditions for Low Temperature Test Chamber
    GB 10592-89 Technical Conditions for High and Low Temperature Test Chamber
    GB 11158-89 Technical Conditions for High Temperature Test Chamber
    GB/T5170.2 -1996 Basic parameter verification method of environmental test equipment for
    electrical and electronic products GB2423.1-89 Basic test procedures for electrical and electronic products Test A: Low temperature test method
    GB2423.2-89 Basic test procedures for electrical and electronic products Test B: High temperature test method
    GB2424 .1-89 Basic environmental test procedures for electrical and electronic products High temperature and low temperature test guidelines


    2. Product parameters


    model

    JC-GDS-120C

    JC-GDS-210C

    JC-GDS-500C

    JC-GDS-1000C

    Studio size

    400*500*600

    500*600*700

    700*800*900

    1000*1000*1000

    Dimensions

    1120*1070*1560

    1140*1150*1660

    1360*1380*1860

    1660*1500*1980

    Humidity range

    20-98%RH

    Humidity deviation

    ±2%RH-3%RH

    temperature range

    -70℃~120

    temperature fluctuation

    ≤±0.5

    temperature deviation

    ≤±1

    display resolution

    Temperature 0.1Humidity 0.11%RH

    Temperature Sensor

    Class A PT100 platinum resistance temperature sensor

    operating mode

    constant operation

    timed operation

    The running time can be set as needed, 0.1-999.9 (HMS) adjustable

    Heating time

    25(normal temperature)-70℃≤80min

    cooling time

    25(normal temperature)150℃≤60min

    refrigeration unit

    Hermetic compressor

    Refrigerant

    R404A/R23

    cooling method

    air cooling

    humidification system

    External isolation type, all stainless steel surface evaporator

    Dehumidification system

    Laminar flow contact dehumidification method with evaporator coil dew point temperature

    water supply method

    The humidification water supply adopts an automatic method, and the residual water can be recovered, saving water and reducing consumption

    heater

    Nickel-chromium alloy electric heater

    Box outer wall material

    Baosteel's cold-rolled steel sheet (1.5mm thick), surface electrostatically sprayed

    Box inner wall material

    Anti-corrosion SUS304 mirror stainless steel plate (1.2mm thick)

    Safety protection device

    Leakage, short circuit, water shortage, overtemperature, compressor overpressure, overload, motor overheating and overcurrent protection

    Observation window

    Electric heating film hollow heat-proof observation window

    Insulation Materials

    Fine insulating glass wool

    Standard Parts

    1 test hole with diameter of 25, 50 or 100mm, 2 sets of sample holders, anti-fog lighting device, 4 casters

    Use environment

    380V (±10%), 50HZ three-phase four-wire + independent protective ground wire

    Options

    RS232 or RS485 computer interface and software


    3. Product Features


    1. It has a wide control precision.


    2. It has a wide control precision.


    3, with an independent over-temperature protection system.


    4. The instrument adopts imported temperature controller, with PI adjustment and self-tuning functions, and online correction function of temperature.
