High and Low Temperature Alternating Humidity and Heat Test Chamber
High and Low Temperature Alternating Humidity and Heat Test Chamber

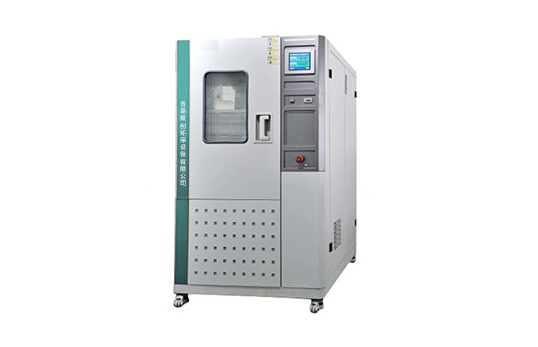

JC-GDR-120B/210B/500B/1000B High and Low Temperature Alternating Humidity and Heat Test Chamber Type B
  • Product name:JC-GDR-120B/210B/500B/1000B High and Low Temperature Alternating Humidity and Heat Test Chamber Type B
  • Order number:
  • Model:JC-GDR-120B/210B/500B/1000B
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    It is suitable for high and low temperature and storage tests of electrical, electronic products, instruments, materials and components, and is widely used in aviation, aerospace, telecommunications, instrumentation, materials, electrical, electronic products, various electronic components, etc. Accelerated damp heat test, alternating damp heat test and constant damp heat test for industries, electrical products, materials, parts, equipment, etc., in order to evaluate the performance of the test sample under given environmental conditions. Check its performance indicators.
    Implement and meet the standards and test methods:
    GB/T10589-2008 Technical Conditions for Low Temperature Test Chamber
    GB/T11158-2008 Technical Conditions for
    High Temperature Test Chamber GB/T0592-2008 Technical Conditions for High and Low Temperature Test Chamber (degree alternating)
    GB/T2423.1- 2008 test A: low temperature
    GB/T2423.2-2008 test B: high temperature GB/T2423.34-205
    test
    GJB150.3A-2009 Part 3: High Temperature Test
    GJB150.4A-2009 Part 4: Low Temperature Test
    GJB150.9A-2009 Part 9: Humidity Test


    2. Product parameters


    model

    JC-GDR-120B

    JC-GDR-210B

    JC-GDR-500B

    JC-GDR-1000B

    Studio size

    400*500*600

    500*600*700

    700*800*900

    1000*1000*1000

    Dimensions

    1120*1070*1560

    1140*1150*1660

    1360*1380*1860

    1660*1500*1980

    Humidity range

    20-98%RH

    Humidity deviation

    ±2%RH-3%RH

    temperature range

    -40℃~150

    temperature fluctuation

    ≤±0.5

    temperature deviation

    ≤±1

    display resolution

    Temperature 0.1Humidity 0.11%RH

    Temperature Sensor

    Class A PT100 platinum resistance temperature sensor

    operating mode

    Constant operation + program operation

    timed operation

    The running time can be set as needed, 0.1-999.9 (HMS) adjustable

    Heating time

    25(normal temperature)-40℃≤60min

    cooling time

    25(normal temperature)150℃≤60min

    refrigeration unit

    Hermetic compressor

    Refrigerant

    R404A/R23

    cooling method

    air cooling

    humidification system

    External isolation type, all stainless steel surface evaporator

    Dehumidification system

    Laminar flow contact dehumidification method with evaporator coil dew point temperature

    water supply method

    The humidification water supply adopts an automatic method, and the residual water can be recovered, saving water and reducing consumption



    heater

    Nickel-chromium alloy electric heater

    Box outer wall material

    Baosteel's cold-rolled steel sheet (1.5mm thick), surface electrostatically sprayed

    Box inner wall material

    Anti-corrosion SUS304 mirror stainless steel plate (1.2mm thick)

    Safety protection device

    Leakage, short circuit, water shortage, overtemperature, compressor overpressure, overload, motor overheating and overcurrent protection

    Observation window

    Electric heating film hollow heat-proof observation window

    Insulation Materials

    Fine insulating glass wool

    Standard Parts

    1 test hole with diameter of 25, 50 or 100mm, 2 sets of sample holders, anti-fog lighting device, 4 casters

    power supply

    380V (±10%), 50HZ three-phase four-wire + independent protective ground wire

    Use environment

    5℃~+30℃ ≤80%RH

    Options

    RS232 or RS485 computer interface and software


    3. Product features


    1. The appearance design is simple and beautiful, the installation position of each component is reasonable, and the electrostatic spraying color meets the overall configuration requirements of the customer's laboratory.


    2. It has a wide temperature control range and high control accuracy.


    3. Balanced temperature and humidity adjustment It can carry out high-precision and stable temperature and humidity control.


    4. With timing operation function.


    5. Scheduled start function.


    6. With independent over-temperature protection system.


    7. Using Korean original high-precision programmable temperature and humidity controller, 5.7 inches True color touch screen operation, Chinese/English display.


    8. Adopt imported refrigeration compressor unit, cold end output control, save energy consumption and reduce customer use costs.
