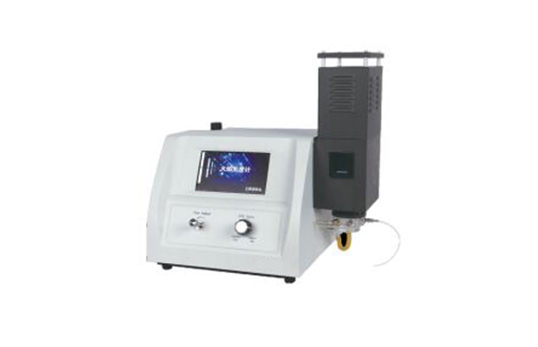

Product name：FP series flame photometer -
Order number： -
Model：FP -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
This product is an analytical instrument designed and manufactured according to the basic principle of emission spectroscopy. It is widely used in the analysis and measurement of agricultural fertilizer, soil analysis, cement, ceramics and other industries and silicic acid industry; FP series flame photometer uses liquefied gas as fuel gas.
2. Product parameters
1. Curve calibration: broken line method, straight line method
2. Stability: the relative large change of the instrument's indication value within 15S is set at 3%
3. Measured once per minute, 6 times in total,
4. The instrument's indication value The relative large change of the set at 15%
5. Repeatability: ^ 3%
6. Response time: 8s
7. Sample suction and spray setting: < 6ml/min
8. Power supply voltage: AC220V±22V 50±1Hz
9. Rated power: 30Wmodel
FP6450
FP6440
FP6432
FP6431
FP6430
Display method
7-inch color capacitive touch LCD screen
Show results
Concentration value
Reading range
0.000～999.9
test element
Potassium, Sodium, Lithium, Calcium, Barium
Potassium, Sodium, Lithium, Calcium
Potassium, Sodium, Barium
Potassium, Sodium, Calcium
Potassium, Sodium, Lithium
number of channels
5
4
3
3
3
detection limit
Potassium
≤0.004
sodium
≤0.008
mmol/L
lithium
≤0.015
〇
〇
≤0.015
calcium
≤0.050
〇
≤0.050
〇
barium
≤0.044
〇
≤0.044
〇
〇
Linearity error
Potassium
≤0.005
mmol/L
sodium
≤0.03
lithium
≤0.021
〇
〇
≤0.021
calcium
≤0.075
〇
≤0.075
〇
barium
≤0.066
〇
≤0.066
〇
〇
Response time
<8s
Small suction and spray volume
<6ml/min
stability
Continuous sample injection with standard solution, the relative large change of the displayed value of the instrument within 15s is less than or equal to 3% . One measurement per minute, a total of 6 times of measurement, the large change of the displayed value of the instrument is less than or equal to 15%.
Repeatability
≤3%
Graph
have
printer
Optional
printer type
Built-in thermal printer
USB interface
have
connect computer
Yes
3.product features
1, with potassium, sodium, lithium, calcium, barium element direct reading function.
(According to the specific model)
2, with potassium, sodium, lithium, calcium, barium S-process keyboard switching function.
(According to the specific model) 3,
7-inch color touch screen.
4. It has the function of automatic calculation of correlation coefficient.
5, with the flame size pre-selected function.
6, with a safe daughter-in-law fire protection device.
7. With data direct printing device.
8. With USB communication port.
