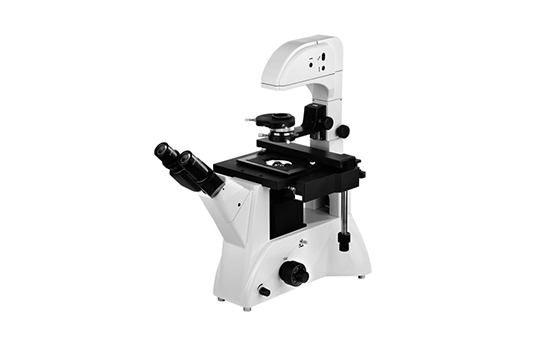

JC-XSP-3 inverted biological microscope
  • Product name:JC-XSP-3 inverted biological microscope
  • Order number:
  • Model:JC-XSP-3
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    The inverted biological microscope adopts an excellent optical system, equipped with a long working distance plan objective lens and a large field eyepiece, and a compact and stable high-rigidity body, which fully reflects the anti-vibration requirements of microscopic operations. The rotating pendulum-in-swing-out concentrating system can observe non-contaminated cultured cells in tall petri dishes or cylindrical flasks. The ideal design in line with ergonomic requirements makes the operation more convenient and comfortable, and the space is wider. The product is suitable for microscopic observation of cell tissue, transparent liquid tissue, and dynamic microscopic observation of cultured tissue in culture dishes. It can be used in scientific research institutes, colleges and universities, agriculture, animal husbandry and dairy industries.


    2. Product parameters


    Technical Specifications

    eyepiece

    Large field of view WF10X (field of view Φ22mm)

    centering telescope



    PLL 4 X0.1 working distance: 17.5 mm, cover glass thickness: 1.2 mm .

    PLL 40X0.60 Working distance: 3.5 mm, Cover glass thickness: 1.2 mm.

    Phase contrast objective

    PLL 10X0.25 PHP2 Working distance: 4.3 mm, Cover glass thickness: 1.2 mm.

    PLL 20X0.40 Working distance: 8.0 mm, Cover glass thickness: 1.2 mm.

    eyepiece tube

    The tilt is 45˚, and the interpupillary distance adjustment range is 53~75mm.

    Focusing mechanism

    Coarse and micro-movement coaxial focusing, with locking and limit device, micro-movement grid value: 2μm.

    converter

    Five hole converter

    Stage

    Fixed stage size: 227mmX208mm.

    Glass round stage plate size: Ф118mm.

    Mechanical movement size, movement range: horizontal (X) 114mm, vertical (Y) 77mm

    Petri dish holder one

    Inner tank size: 86mm (width) X129.5mm (length), suitable for round petri dish Ф87.5mm

    Petri dish holder two

    Inner tank size: 34mm (width) X77.5mm (length), suitable for round petri dish Ф68.5mm

    Petri dish holder three

    Inner groove size: 57mm (width) X82mm (length)

    Concentrator system

    Long working distance condenser, working distance 55mm, with turntable phase contrast device

    Lighting system

    6V30W halogen lamp, brightness adjustable

    color filter

    Frosted glass, blue and green color filters

    Optional accessories

    name

    Category/Technical Parameters

    eyepiece

    Reticle eyepiece 10X (field of view Φ22mm) grid value 0.10mm/grid

    Phase contrast objective

    PL L20X/0.40 PHP2 Working distance: 8.0 mm

    PL L40X/0.60 PHP2 Working distance: 3.5 mm

    converter

    Six hole converter

    CCD connector

    0.5X

    1X


    3. Product Features


    observation system

    Hinged binocular viewing tube, 45 degree tilt,

    There is no need to look down or look up for a long time during operation,

    Effectively release the operator's neck and shoulders,

    The field of view of the usual wide-angle eyepiece can reach ф 22mm,

    Wider and more comfortable visual observation, can be fitted with rubber goggles



    transparent stage plate

    Transparent high-quality glass stage plate,

    Visualize the transformation process of the objective lens,

    Eliminate the trouble of objective lens identification in the past,

    At the same time, it can greatly reduce the

    Defect that the stage is deformed by heat



    photography camera observation

    Rear camera interface design,

    So that photography does not interfere with visual observation.

    100% clear light ,

    Ideal for low-light photomicrography.
