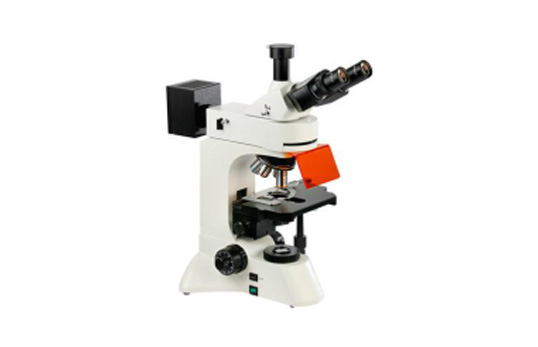

Product name：JC-ZZ-04 Upright Epifluorescence Microscope -
Order number： -
Model：JC-ZZ-04 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
JC-ZZ-04 epi-fluorescence microscope is suitable for fluorescence microscopy and transmission bright-field observation . It adopts infinity plan achromatic fluorescence objective without magnification chromatic aberration and large-field eyepiece, and the optical system has clear imaging and wide field of view. The transflective light source adopts high-power and high-brightness LED, the lighting device has low power consumption, long service life, and good heat dissipation effect, the instrument is safer and more comfortable to use, and the use and maintenance costs are low.
2. Product parameters
eyepiece
Large field of view WF10X(Φ22mm)
Infinity Plan Achromatic Objectives
PL 4X/0.10
PL 10X/0.25
PLF L40X/0.85 (spring) (no magnification chromatic aberration)
PL 100X/1.25 (spring, oil)
eyepiece tube
Trinocular, 30˚ tilt
C interface
1X C-type CCD dedicated interface
Epi-Fluorescence Illumination System
3W high-brightness single-color LED, which can be combined in single color or double color
Fluorescence Filter Set B
Excitation light band: 520~530nm
Fluorescence Filter Set G
Excitation light band: 460~470nm
Fluorescence filter set UV
Excitation light band 360nm~370nm
Fluorescence Filter Set V
Excitation light band 390nm~400nm
Focusing mechanism
Coarse and micro-movement coaxial focusing, micro-movement grid value: 2μm, with locking and limit device
converter
Five holes (inward ball positioning)
Stage
Double-layer mechanical mobile type (size: 210mmX140mm, moving range: 75mmX50mm)
Transillumination system
Abbe condenser NA.1.25 can be lifted up and down
Blue filter and frosted glass
Concentrators adapted to LED lighting (built-in field diaphragm)
3W bright white LED, brightness adjustable
Optional accessories
eyepiece
Reticle eyepiece 10X(field number:Φ22mm)
objective lens
Infinity Plan Achromatic Objective 60X
color filter
Green and yellow filters
Fluorescence filter
film set
Violet 390nm~400nm (390nm~400nm)
UV light 360nm~370nm (360nm~370nm)
CCD connector
0.4X, 0.5X, 0.5X with reticle
camera
TL1.41 fluorescence special luminescent CCD camera with software
digital camera connector
CANON(EF) NIKON(F)
3. Product Features
1. Adopt infinity optical system and modular function design.
2. Equipped with high-quality infinity plan achromatic fluorescent objective lens, the imaging is clearer and brighter.
3. Wide-angle flat-field eyepiece: The diameter of the field of view is Ф22mm.
4. Coaxial focusing mechanism with coarse and fine movement, with locking and limiting device, fine movement grid value: 2μm.
5. Transmitted light source: 3W high-brightness white LED, adjustable brightness.
6. Epi-light source: 3W high-brightness single-color LED, can switch LEDs in different bands, and the brightness is not adjustable.
7. The trinocular tube can be freely switched between visual observation and photomicrography, and 100% light can be passed during photography, which is suitable for low-light microscopic image shooting.
8. Wide voltage power supply (85-265V 50/60Hz).
