PRODUCTS CENTER
-
Product name：TCH-5.0ICE CCD camera for chemical fluorescence microscope -
Order number： -
Model：TCH-5.0ICE CCD -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-

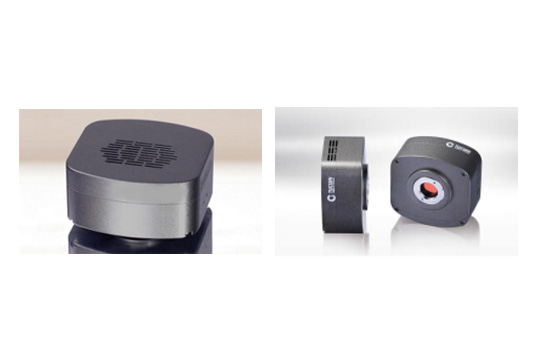

TCH-5.0ICE CCD camera for chemical fluorescence microscope
Using the newly developed 5.07 million effective pixel CCD image sensor ICX282AQ, the shooting of still images and videos can achieve the best image quality. The performance of the image sensor has also been significantly improved, bringing image quality with higher sensitivity, lower signal noise, and higher dynamic range, plus the full-frame field of view effect, meeting the professional requirements of microscope observers .
Very low noise
Colors and details show only part of the huge potential of the ICX282AQ image sensor. With the TCH-5.0ICE, you can capture vivid, low-noise images at very high gain, which removes many of the barriers to fluorescence imaging without sacrificing excellent natural tonal transitions. Some low light levels require the extreme resolution TCH-5.0ICE to produce stunning low-noise image files with A4 format print resolution.
TCH-5.0ICE precisely controls hue, so all colors are faithfully reproduced - reds are pleasantly saturated without being overly reddish, and various blues that were once considered difficult to reproduce are now standard tones
Fluorescence mode 6 high-speed images per second
High sensitivity and large software processing performance enable TCH-5.0ICE to preview faint fluorescence images at a high speed of 6 frames per second , easily find and focus samples.
Pleasant saturation, faithful color
TCH-5.0ICE performance index parameters
TCH-5.0
TCH-5.0ICE ICE
Image sensor model
Sony ICX282AQ
Sony ICX282AQ
Color / B&W
color
color
CCD/CMOS size
2/3"
2/3"
Pixel size (μm)
3.4×3.4
3.4×3.4
Effective Pixels
5.07 million
5.07 million
Large resolution (H×V)
2580×1944
2580×1944
scan mode
line-by-line preview
line-by-line preview
shutter mode
electronic shutter
electronic shutter
frame rate
3fps (2580 × 1944 full resolution)
3fps (2580 × 1944 full resolution)
12fps (1280 × 932)
12fps (1280 × 932)
color depth
36bit
36bit
Analog to digital conversion
12 bit
12 bit
exposure control
automatic / manual
automatic / manual
Exposure range ( seconds )
0.0001-1200
0.0001-1200
White balance control
automatic / manual
automatic / manual
Dynamic Range
62dB
62dB
Operating temperature
0-60 ℃
0-60 ℃
refrigeration
without
Semiconductor refrigeration (ICE model )
Working humidity
45%-85%
45%-85%
Storage temperature
-20-70 ℃
-20-70 ℃
cooling temperature
without
-10 ℃
OS support
Windows/Linux/Mac
Windows/Linux/Mac
Optical interface
C interface
C interface
Data interface
USB2.0/480Mb/s
USB2.0/480Mb/s
