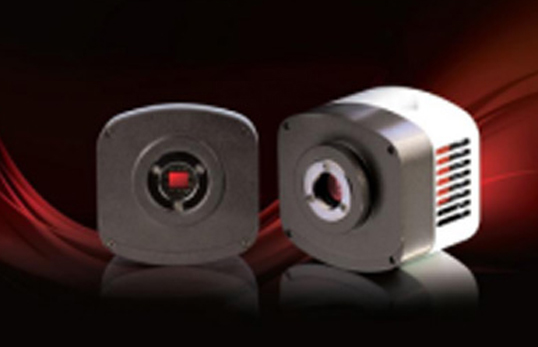

Product name：H-694CICE refrigeration chemiluminescence fluorescence microscope CCD industrial camera -
Order number： -
Model：H-694CICE -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-

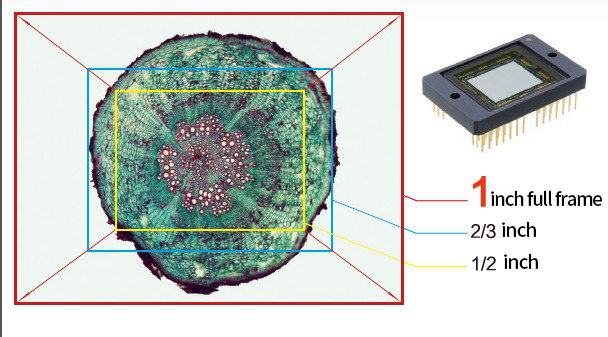

1-inch full-frame
full- frame--challenging a larger field of viewUsing the newly developed 6.1 million effective pixel full-frame ExviewHAD CCD image sensor ICX694, it can achieve good image quality for shooting still images and videos. The performance of the image sensor has also been significantly improved, bringing image quality with high sensitivity, low signal noise, and high dynamic range, plus the full-frame field of view effect, meeting the professional requirements of microscope observers.
Extremely low noise
Color and detail represent only part of the larger potential of the ICX694 image sensor. With the H-694C, you can capture vivid, low-noise images at higher gain, which removes many of the barriers to fluorescence imaging without sacrificing excellent natural tonal transitions. Some low-light conditions require the use of resolution H-694C to produce stunning low-noise image files with A4 format print resolution.
Fluorescence mode 6 high-speed images per second High
sensitivity and powerful software processing performance enable the H-694C to preview faint fluorescence images at high speed of 6 frames per second, easily finding samples and focusing.
Pleasant saturation, faithful color
The H-694C precisely controls hue, so all colors are faithfully reproduced—reds are pleasantly saturated without being overly reddish, and various blues that were once considered difficult to reproduce are now standard tones
H-694C performance parameters
Product number
H-694C
H-694CICE
Image sensor model
Sony ICX694AQ
Sony ICX694AQ
Color / B&W
color
color
CCD/CMOS size
1 inch
1 inch
Pixel size (μm)
4.54 microns x 4.54 microns
4.54 microns x 4.54 microns
Effective Pixels
6000000
6000000
Large resolution (H×V)
4080Hx3072V
4080Hx3072V
scan mode
line-by-line scan
line-by-line scan
shutter mode
electronic shutter
electronic shutter
frame rate
3.3 frames per second (2728x2192)
3.3 frames per second (2728x2192)
6.2 frames per second (1620x1072 Cropping)
6.2 frames per second (1620x1072 Cropping)
8.8 frames per second (1080x720)
8.8 frames per second (1080x720)
Analog to digital conversion
12bit
12bit
exposure control
automatic / manual
automatic / manual
Exposure range ( seconds )
1 ms - 160 minutes
1 ms - 160 minutes
White balance control
automatic / manual
automatic / manual
Dynamic Range
69.8dB
69.8dB
Operating temperature
0-60℃
0-60℃
refrigeration
without
Semiconductor refrigeration
Working humidity
45%-85%
45%-85%
Storage temperature
-20-70℃
-20-70℃
cooling temperature
without
Peltier Class L(0℃)
OS support
Windows/Linux/Mac
Windows/Linux/Mac
Optical interface
C interface
C interface
Data interface
USB2.0/480Mb/s
USB2.0/480Mb/s
