Distiller
Sulfur Dioxide Analyzer
Sulfur Dioxide Analyzer
Sulfur Dioxide Analyzer

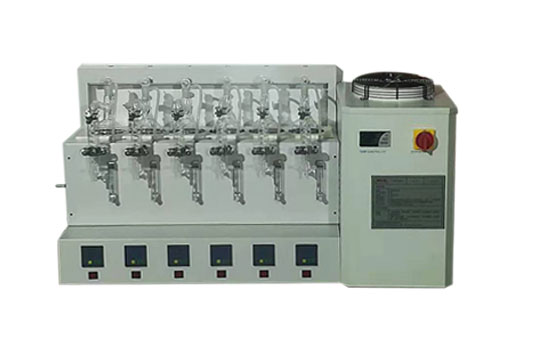

  • Product name:Sulfur Dioxide Analyzer
  • Order number:
  • Model:JC-ZY-400
  • Stock status:Available
  • Logistics:By sea, air, express, etc.
  • Product Introduction
  • Features
  • Model (Sulfur Dioxide Distillation Unit)

    JC-ZY-400

    Scope of application

    Extraction and titration experiments of sulfur dioxide residues in food and traditional Chinese medicines

    Sample throughput

    1~6 (including blank and parallel samples)

    Display method

    LCD touch screen

    heating method

    Far-infrared ceramic heating (no open flame heating, waterproof)

    cooling method

    Built-in cooling water circulator, no need for external water cooling

    temperature range

    100~500℃

    temperature control

    The heating power can be adjusted independently for each hole

    Nitrogen protection

    The host is equipped with a nitrogen main interface, which can control the nitrogen flow (60-600ml/min) with a single hole.

    Weighing balance device

    The weighing requirements can be set, and the recovery will automatically stop when the recovered liquid meets the weighing requirements

    Distillation Flask Specifications

    Standard: 500ml flask

    Distillation Receiver Flask Specifications

    Standard: 250ml conical flask

  • 1. The closed cooling water automatic cooling and circulating return device does not need external tap water cooling, saving energy and reducing consumption



    2. Large LCD touch screen control, can realize single control temperature and single control weighing and timing



    3. Control of distillation end point: the weighing sensor is used to automatically detect the distillation end point, and the distillation volume weight can be set arbitrarily, and it will stop automatically. The control accuracy is 0.01 g.



    4. Equipped with an anti-vacuum solenoid valve, with automatic anti-suck back function (when making cyanide and sulfur dioxide, the distillate outlet is inserted below the absorption liquid level, which is easy to suck back)



    5. Built-in alarm Automatic alarm reminds collection when distillation is over, and automatically stops alarm function after collection



    6. Special customized condenser tube, double-layer vacuum chamber design, fast distillation speed without reflux



    7. Imported leakage protection system to ensure the safety and reliability of the experiment



    8. Simple system, convenient installation and maintenance, reliable use



    9. It has the advantages of high thermal efficiency, long life, fast heating and cooling speed, adjustable heating time and heating power, etc.
