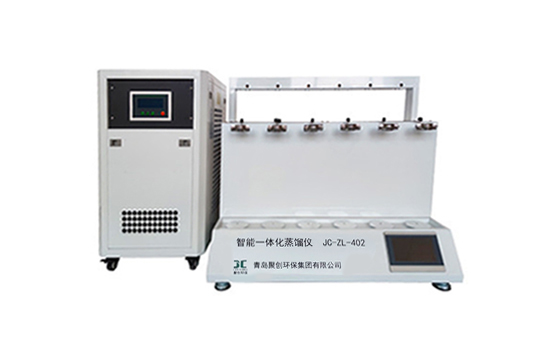

Product name：Intelligent integrated distillation apparatus -
Order number： -
Model：JC-ZL-402 -
Stock status：Available -
Logistics：By sea, air, express, etc.
- Product Introduction
- Features
-
JC-ZL-402 intelligent integrated distiller (ammonia nitrogen distiller, volatile phenol distiller, cyanide distiller) adopts intelligent distillation end point control, built-in cooling water automatic cooling and reflux device, and professionally designed condenser tube and other technical means , to achieve the purpose of simple operation, automatic distillation, beautiful and practical, energy saving and consumption reduction.
Widely used in environmental monitoring, environmental protection, aquatic products, water supply and drainage, universities, scientific research institutes, factories and mines and other chemical laboratories where distillation is required, such as volatile phenol, cyanide, ammonia nitrogen, Kjeldahl nitrogen, COD in the sample , Distillation and digestion treatment of water in oil and other projects and distillation experiments of sulfur dioxide residue in food.
model
JC-ZL-402
Display method
LCD touch screen
number of samples
6 bits
Distillation speed
2-12ml/min (distillation speed can be adjusted by setting heating power))
heating method
Far-infrared ceramic heating (no open flame heating, waterproof)
Heating time
Heating time: 5-30min
Anti-suck back
have
Distillation endpoint control
Single-hole distillation distillate can be set, and the volume control accuracy is 0.01 g
temperature control
Single hole automatic temperature control, room temperature -250 ℃
time control
0-300min adjustable
Distillation Flask Specifications
Standard: 500ml×6; 250ml×6 (optional)
Distillate receiving bottle
Standard: 250ml×6; 500ml×6 (optional)
Leakage protection device
have
Rated voltage
220V/50HZ
heating power
800W*6
cooling method
Built-in compressor for cooling, closed internal circulating cooling water system, no need for external cooling water source
Scope of application
Pre-distillation treatment of volatile phenol, cyanide, ammonia nitrogen and other items in water quality testing
-
1. The closed cooling water automatic cooling and circulating return device does not need external tap water cooling, saving energy and reducing consumption
2. Large LCD touch screen control, can realize single control temperature and single control weighing and timing
3. Control of distillation end point: the weighing sensor is used to automatically detect the distillation end point, and the distillation volume weight can be set arbitrarily, and it will stop automatically. The control accuracy is 0.01 g.
4. Equipped with an anti-vacuum solenoid valve, with automatic anti-suck back function (when making cyanide and sulfur dioxide, the distillate outlet is inserted below the absorption liquid level, which is easy to suck back)
5. Built-in alarm Automatic alarm reminds collection when distillation is over, and automatically stops alarm function after collection
6. Special customized condenser tube, double-layer vacuum chamber design, fast distillation speed without reflux
7. Imported leakage protection system to ensure the safety and reliability of the experiment
8. Simple system, convenient installation and maintenance, reliable use
9. It has the advantages of high thermal efficiency, long life, fast heating and cooling speed, adjustable heating time and heating power, etc.
