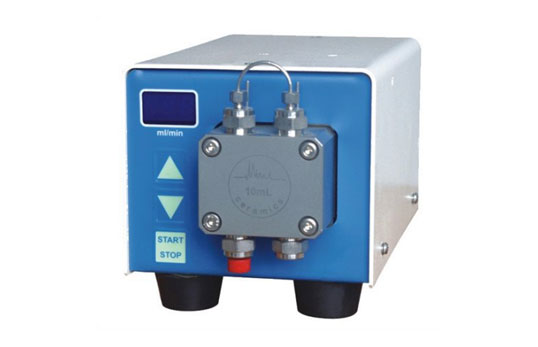

Product name：High pressure advection pump -
Order number： -
Model： -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
The microprocessor-controlled double-piston reciprocating pump adopts intelligent control algorithm, which can reduce the flow pulsation of the pump to a lower level. The advanced sealing technology and the self-cleaning function of the pump head enable the pump to work normally and lastingly under high pressure. Equipped with a pressure sensor, the pump will shut itself off when the working pressure exceeds or falls below the set upper or lower limit. With RS-232/485 interface, it can realize computer remote control. PEEK pumps and stainless steel pumps can be provided according to user requirements. When PEEK pumps are used, they are suitable for eluents and reversed-phase organic solvents with a pH of 0 to 14.
2. Product parameters
pressure range
0-42.0MPa (stainless steel) 0~35MPa (PEEK)
Flow range
0.001-9.999mL/min
Flow Accuracy (Flow Stability)
RSD＜0.1%
Flow setting error
<±0.1%
Pressure Sensor
The pressure display accuracy is 0.1Mpa
Overvoltage protection
When the working pressure exceeds or falls below the set upper or lower limit, the pump will automatically shut down and alarm
Pump head and flow path material
Four kinds: PEEK, stainless steel, with ceramic lining, with titanium steel lining; user optional
