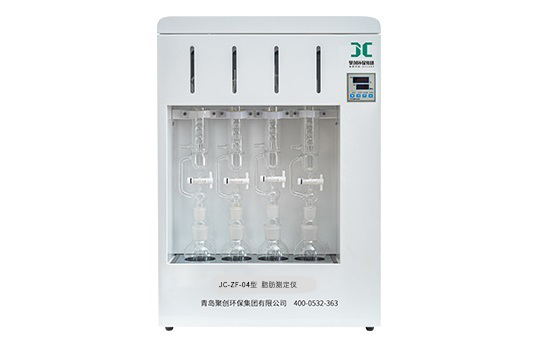

JC-ZF-04 Quadruple fat analyzer
  • Product name:JC-ZF-04 Quadruple fat analyzer
  • Order number:
  • Model:JC-ZF-04
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • Details Page
  • 1. Product introduction

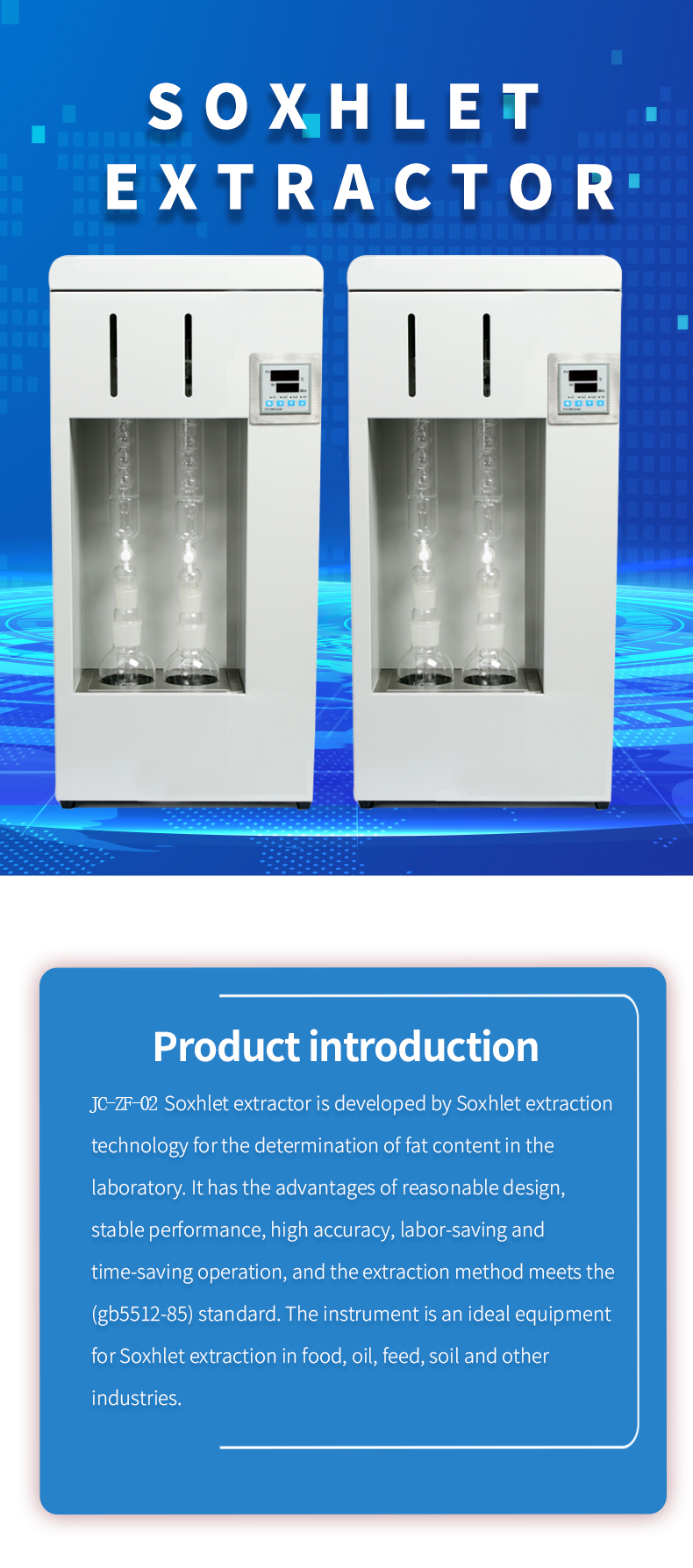

    JC-ZF-04 fat analyzer is an equipment developed by Soxhlet extraction technology for laboratory determination of fat content. It has reasonable design, stable performance, high accuracy, labor-saving and time-saving operation, and the extraction method conforms to ( GB5512-85) standard. This instrument is an ideal equipment for Soxhlet extraction in food, oil, feed, soil and other industries.

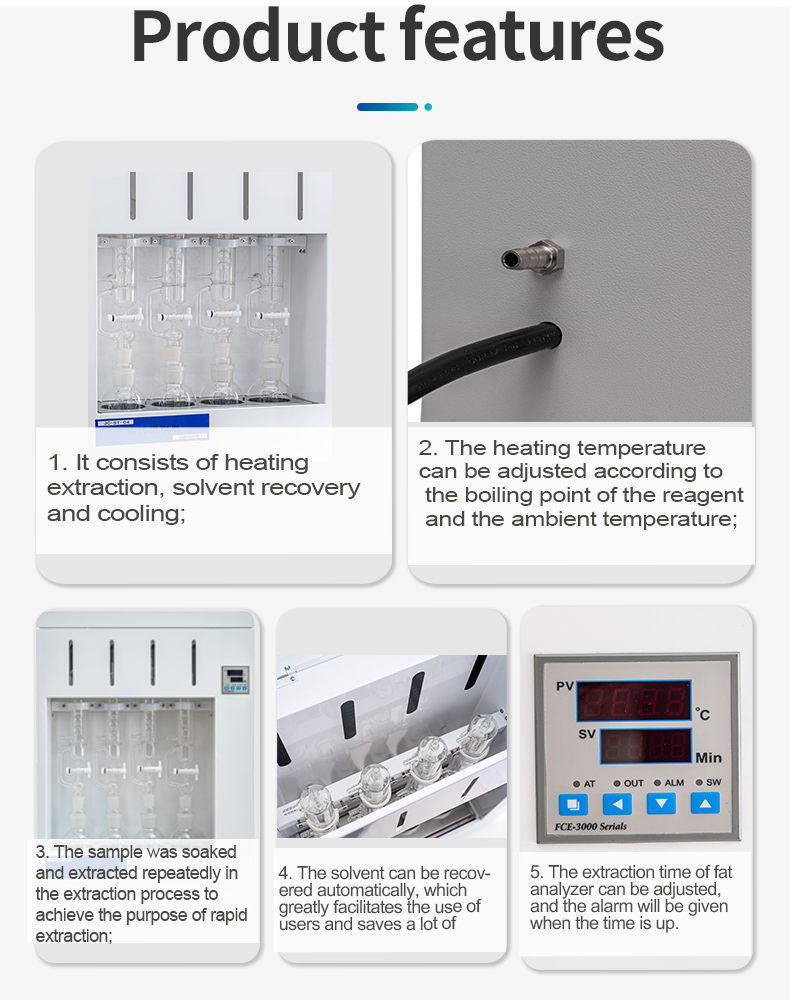

    2. Product Features

    1. It consists of three parts: heating extraction, solvent recovery and cooling;
    2. During operation of the fat analyzer, the heating temperature can be adjusted according to the boiling point of the reagent and the ambient temperature;
    3. The sample is repeatedly soaked and extracted during the extraction process, thereby To achieve the purpose of rapid extraction;
    4. The solvent can be automatically recovered, which greatly facilitates the use of users and saves a lot of time;
    5. The extraction time of the fat analyzer is adjustable, and it will alarm when it arrives.

    3. Product parameters

    1. Product model: JC-ZF-04

    2. Number of extracted samples per batch: 4;

    3. Extraction bottle volume: 250ml/piece;

    4. Extraction sample volume: 0.5-20g/piece;

    5. Temperature control range: room temperature +5℃~100℃

    6. Power supply voltage: 220V+10V frequency 50Hz;

    7. Electric heating power: 500W;

    8. Controller: LCD display

    9. Temperature control accuracy: ±0.3℃

    10. Heating time: about 10 minutes

    11 , Recovery system: automatic

    Solvent recovery rate: ≥80%

    13. Dimensions: 560*230*790mm;

    14. Weight of fat measuring instrument: 21kg
