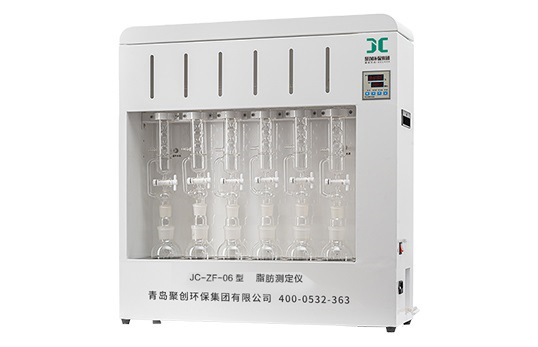

1. Product introduction

JC-ZF-06 fat analyzer is a device developed by Soxhlet extraction technology for laboratory determination of fat content. It has reasonable design, stable performance, high accuracy, labor-saving and time-saving operation, and the extraction method conforms to ( GB5512-85) standard. This instrument is an ideal equipment for Soxhlet extraction in food, oil, feed, soil and other industries.

2. Product Features

1. It consists of three parts: heating extraction, solvent recovery and cooling;
2. During operation of the fat analyzer, the heating temperature can be adjusted according to the boiling point of the reagent and the ambient temperature;
3. The sample is repeatedly soaked and extracted during the extraction process, thereby To achieve the purpose of rapid extraction;
4. The solvent can be automatically recovered, which greatly facilitates the use of users and saves a lot of time;
5. The extraction time of the fat analyzer is adjustable, and it will alarm when it arrives.

3. Product parameters

1. Product model: JC-ZF-06

2. Number of extracted samples per batch: 6;
3. Volume of extraction bottle of fat analyzer: 250ml/piece or 500ml optional;
4. Extraction sample volume: 0-5g/piece;
5. Temperature control range: room temperature +5℃ ~100℃
6. Power supply voltage: 220V±10V frequency 50Hz;
7. Electric heating power: 800W;
8. Controller: LCD display
9. Temperature control accuracy: ±0.3℃
10. Heating time: about 10 minutes
11. Recovery system : Automatic
12. Solvent recovery rate: ≥80%
13. Dimensions: 750*230*790mm;
14. Weight: 26kg
