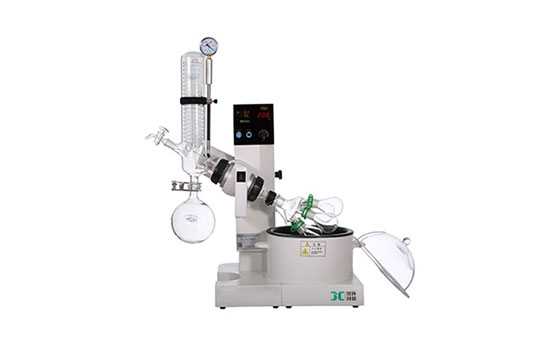

Product name：Multi-manifold rotary evaporator 1L -
Order number： -
Model：JC-ZFDT-1 -
Stock status：Available -
Logistics： By sea, by air, express, etc.
- Product Introduction
- Technical data
- Feature
-
Rotary evaporator, also known as rotary evaporator, is a commonly used laboratory equipment. It consists of a motor, a distillation bottle, a heating pot, a condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure conditions. It is used in chemistry, chemical industry and other fields.
Multi-type rotary evaporator, the main metal parts are made of stainless steel, rust-proof aluminum alloy, compact structure, beautiful appearance, durable, strong practicability, the sealing system is made of fluorine rubber + double PTEF imported materials combined with glass shaft, no slag, Wear-resistant for extended service life
-
Model
JC-ZFDT-1
JC-ZFDT-2
JC-ZFDT-3
main machine
Rocker-type button automatic lift 0-150 mm
Ultimate vacuum
Below 399.9Pa (3mmHg)
Evaporation capacity
When the vacuum is pumped to the lowest level, close the valve to keep the vacuum degree display in the rotary evaporator, reduce laboratory noise and prolong the service life of the vacuum pump
Rotating speed
Digital display/knob speed regulation 0-310 rpm; power 40W
Knob speed regulation 0-200 rpm; power 40W
heat the pan
One-time forming Teflon composite pot Power 1.5KW
One-time forming Teflon composite pot Power 1.8KW
temperature
Automatic temperature control, digital display Water bath: room temperature -99 degrees ± 1 ℃
cooler
Vertical, ball mill mouth condenser
feeder
Valve type feeding pipe is sleeved with tetrafluoroethylene pipe + water retaining ring
sealing ring
The PTFE vacuum gasket is tightly combined with the glass conduit, which does not drop slag, is resistant to wear and prolongs the service life.
Capacity range
5-way interface*50ml
5 bifurcation interface*100ml
5 bifurcation interface *150ml
total power
Refer to XD-2000
Refer to XD-3000
Refer to XD-5000
volume and weight
Instrument size
Factory standard
Ball mill mouth collection bottle 1L, 24# standard mouth rotating (eggplant shape) 50ml* 5
One ball mill mouth collection bottle 2L, 24# standard mouth rotating (eggplant shape) 100ml* 5
Ball mill mouth collection bottle 3L, 24# standard mouth rotating (eggplant shape) 150ml*5
-
1. Water bath, the temperature range is: room temperature -99 ℃. When the temperature is higher than the set temperature, the heating tube automatically stops heating. The heating pot is provided with a safety handle, has a moderate volume, and heats up rapidly. The heating pot adopts Teflon composite pot, which is easy to clean.
2. Electronic stepless speed regulation. The digital display of the speed is 0-310 rpm, and the forward and reverse function can be selected. It can rotate intermittently left and right, which is suitable for the drying process.
3. Large condensation area, drip point and anti-backflow design. (effectively improve work efficiency)
4. The evaporating bottle adopts a push-hand mechanical device, which is easy to disassemble, safe and reliable.
5. The design is equipped with a vacuum gauge and a valve to control the vacuum degree (to prevent the liquid in the vacuum pump from recoiling into the glass container of the rotary evaporator, so that the experiment can be successful once)
