Rotary evaporator
Rotary evaporator water bath
Rotary evaporator water bath

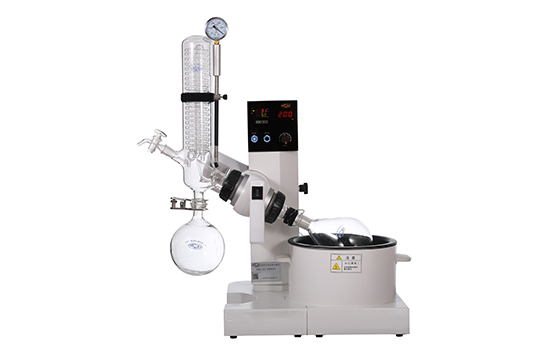

water bath Rotary evaporator
  • Product name:water bath Rotary evaporator
  • Order number:
  • Model:JZ-ZF-RE 5000
  • Stock status:Available
  • Logistics:By sea, by air, express, etc.
  • Product Introduction
  • Technical data
  • Feature
  • JC-ZF-RE5000 rotary evaporator is a rotary evaporator (flask), which increases the evaporation area and places it in a water bath under reduced pressure while rotating and heating, so that the solution in the bottle is diffused and evaporated. It is an ideal basic instrument for concentration, drying and recycling in chemical industry, institutions of higher learning and scientific research laboratories for manufacturing and analysis experiments.



    JC-ZF-RE5000 is a water bath type rotary evaporator developed by our company. The whole machine is elegant, reasonable and compact, easy to operate, accurate in temperature control and reliable in performance. In addition to practical and user-friendly design, sturdy and durable performance is also the most important feature of the product.

  • model

    JC-ZF-RE5000

    main machine

    Rocker-type button automatic lift 0-150 mm

    Vacuum indicator

    When the vacuum is pumped to the lowest level, close the valve to keep the vacuum degree display in the rotary evaporator, reduce laboratory noise and prolong the service life of the vacuum pump.

    Evaporation capacity

    Max.43ml/min

    Rotating speed

    Knob type stepless speed regulation, digital display speed 0~130rpm/min; power 40W

    heat the pan

    Equipped with air duct cooling device, Teflon composite pot φ290×170mm Totally enclosed heater Power 2KW

    temperature

    Automatic temperature control, digital display Water bath: room temperature -99 degrees ± 1

    cooler

    Vertical, high temperature resistant high-quality glass exquisite double-reflow integrated ball-milling condenser tube Cooling area of 0.41 square meters.

    feeder

    Valve type feeding pipe is sleeved with tetrafluoroethylene pipe and water retaining ring

    sealing ring

    Fluorine rubber + PTFE imported material combination vacuum sealing gasket

    Capacity range

    0.25--5L

    total power

    2kw input voltage220v/50Hz

    volume and weight

    Out size:78×69×85cm      G.W: 42kg

    Equipment size:74×44×96cm

    Factory standard

    S35 ball mill mouth 3L collection bottle 1, 29 mouth rotary bottle 1L, (flange mouth) 5L each

  • 1. The main metal parts are made of stainless steel, rust-proof aluminum alloy, compact structure, beautiful appearance, durable and strong practicability;

    2. The sealing system adopts the combination of fluorine rubber + double PTEF imported material and glass shaft, which does not drop slag, wear-resisting and prolongs the service life;

    3. Water bath, the temperature range is: room temperature -99 ℃. When the temperature is higher than the set temperature, the heating tube automatically stops heating.

    4. The design is equipped with a vacuum gauge and a valve (to prevent the liquid in the vacuum pump from recoiling into the glass container of the rotary evaporator, so that the experiment can be successful at one time).
