1. Product introduction

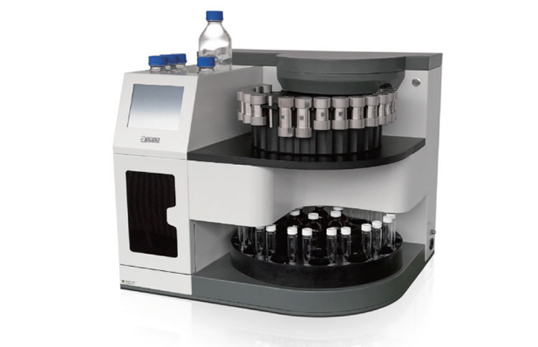

The whole process of BASE-26 automatic rapid solvent extraction instrument includes solvent addition, heating, pressurization, extraction, purification, collection, nitrogen blowing, filtration and cleaning, etc. The whole process is fully automated and controlled, making it more efficient and safer!

Rapid extraction of target components in solid or semi-solid samples in soil, environment, chemicals, electronics, agricultural products and food, and some natural products: such as PCBs, polycyclic aromatic hydrocarbons, organophosphorus (or nitrogen), phenoxy Herbicides, triazine herbicides, diesel fuel, total petroleum hydrocarbons, dioxins, furans, etc.

2. Product parameters

Can be placed in a fume hood for experiments

Temperature control range: room temperature～210℃

Pressure range: atmospheric pressure ~ 20MPa

Extraction tank volume: 1ml, 5ml, 11ml, 22ml, 34ml, 66ml, 100ml

Extraction time: <20min

The extract can be automatically filtered

Up to 26 samples can be extracted at one time

3. Product Features

Highly integrated chemically inert extraction tank () --- easy to use and simple to maintain

Special heating furnace design---simple maintenance, improve instrument reliability

Closed collection bin---prevent personal injury from volatilization of organic reagents

8-inch color high-definition touch screen---Users can intuitively and quickly set extraction parameters and execute function menus

Automatic alarm and stop working---more safe and reliable to use

The whole extraction process can be unattended---greatly reduces the time for experimenters to contact with organic reagents and releases labor
