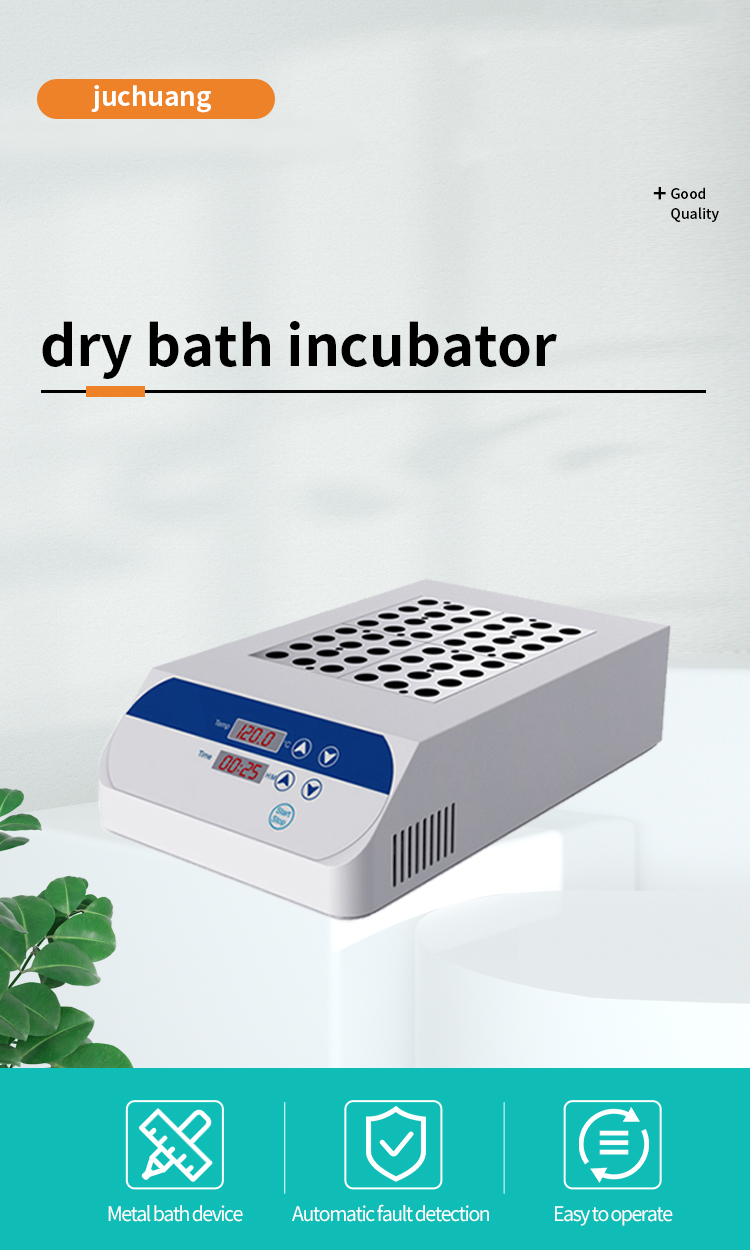

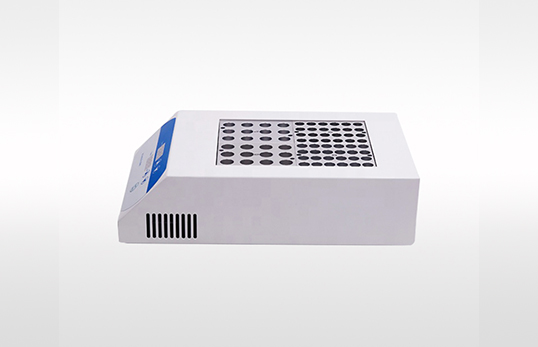

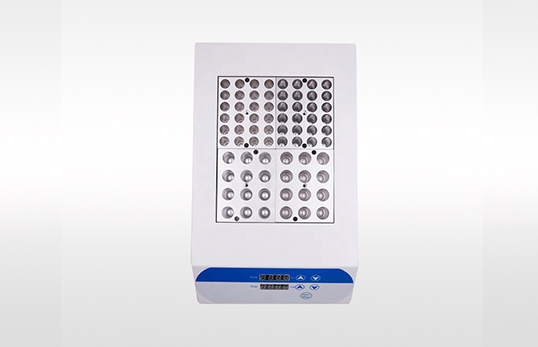

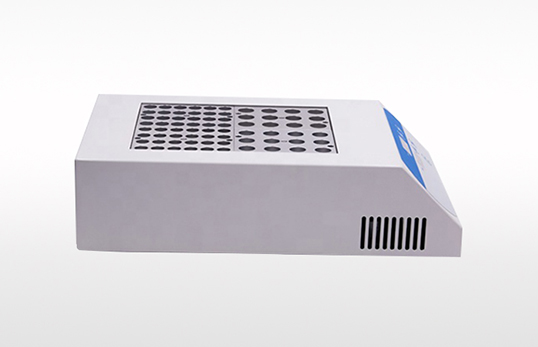

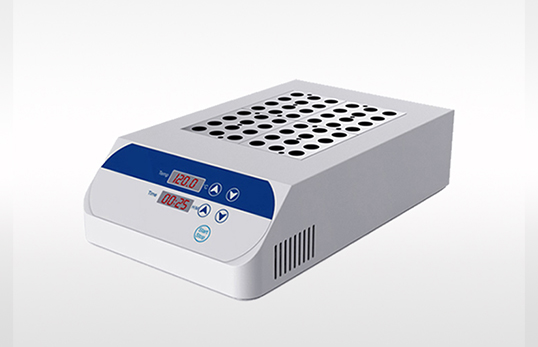

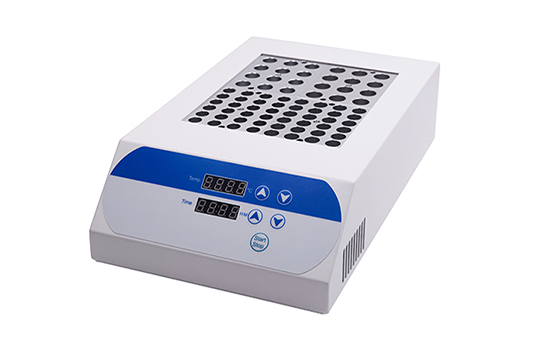

JC-JSY150 Series Dry Thermostat Dry Bath Incubator (Metal Bath)
  • Product name:JC-JSY150 Series Dry Thermostat Dry Bath Incubator (Metal Bath)
  • Order number:
  • Model:JC-JSY150
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • Details Page
  • 1. Product introduction


    JC-JSY150 series dry thermostat is a high temperature constant temperature metal bath device controlled by microcomputer, the high temperature can reach 150 , it can replace the traditional water bath device, it is easy to use; it can be widely used in the preservation and reaction of samples.


    2. Product parameters


                   Product number

    Performance

    JC-JSY 150-1

    JC - JSY 150-2

    JC- JSY 150-3

    Temperature control range

    Room temperature+5℃150℃

    Room temperature+5℃150℃

    Heating time

     30 minutes (from 20to 150)

     30 minutes (from 20to 150)

    Temperature Stability@40

    ±0.3℃

    Temperature Stability@100

    ±0.5℃

    Temperature Stability@120℃

    ±1℃

    Display accuracy

    0.1℃

    Timing time setting

    0-99h59min

    MAX temperature

    150℃

    150℃

    MAX power

    200W

    400W

    600W

    Product Size

    260x220x100mm

    260x220x95mm

    360x220x100mm

    Module model

    See JSY Series Replaceable Modules

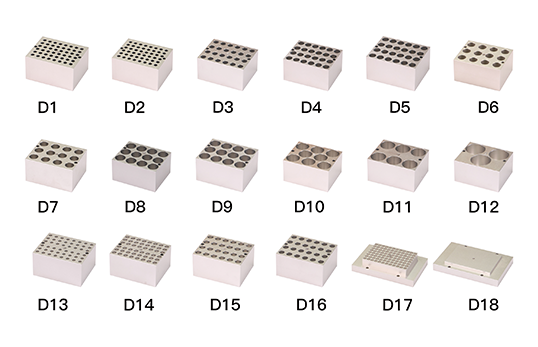

    JSY series replaceable modules:


    model

    Tube diameter

    number of test tubes

    Module size

    D1

    6mm

    48

    96.5X76.5X50

    D2

    7mm

    48

    96.5X76.5X50

    D3

    10mm

    twenty four

    96.5X76.5X50

    D4

    12mm

    twenty four

    96.5X76.5X50

    D5

    13mm

    twenty four

    96.5X76.5X50

    D6

    15mm

    12

    96.5X76.5X50

    D7

    16mm

    12

    96.5X76.5X50

    D8

    19mm

    12

    96.5X76.5X50

    D9

    20mm

    12

    96.5X76.5X50

    D10

    26mm

    8

    96.5X76.5X50

    D11

    28mm

    6

    96.5X76.5X50

    D12

    40mm

    3

    96.5X76.5X50

    D13

    0.2mL

    48

    96.5X76.5X50

    D14

    0.5mL

    48

    96.5X76.5X50

    D15

    1.5mL

    twenty four

    96.5X76.5X50

    D16

    2 mL

    twenty four

    96.5X76.5X50

    D17

    0.2mL

    96

    96.5X153X33.5

    D18

    flat

    96-well microtiter plate

    96.5X153X22.5

    D19

    can be customized

    can be customized

    can be customized





    Note: D17 and D18 occupy 2 standard module spaces. For example: JC-JSY 150-2 can only accommodate 1 D17 or 1 D18.

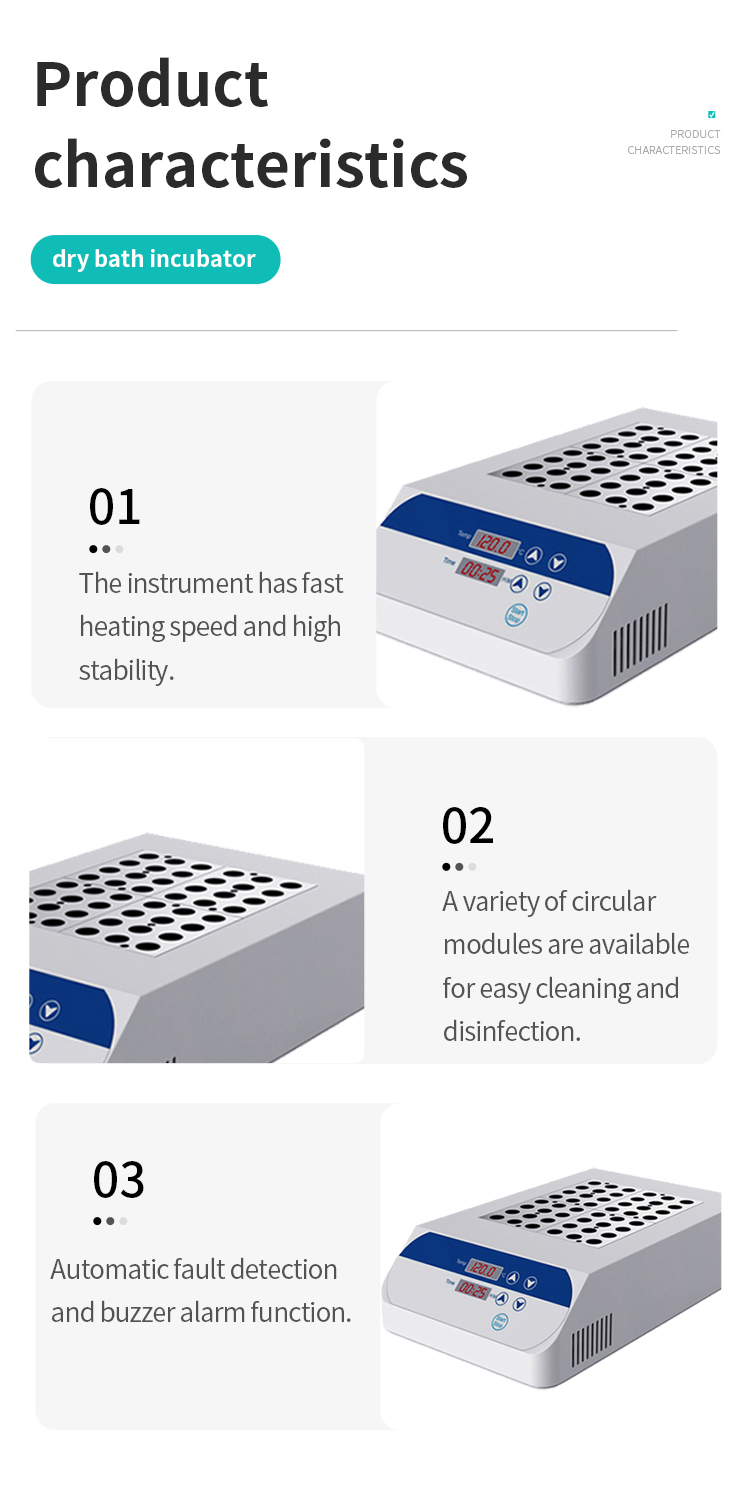

    3. Product Features


    1. Temperature and time LED display
    2. Instant temperature display, time decrement display

    3. Automatic fault detection and buzzer alarm function

    4. Temperature deviation calibration function

    5. Convenient module replacement for easy cleaning and disinfection

    6. Built-in over-temperature protection device
