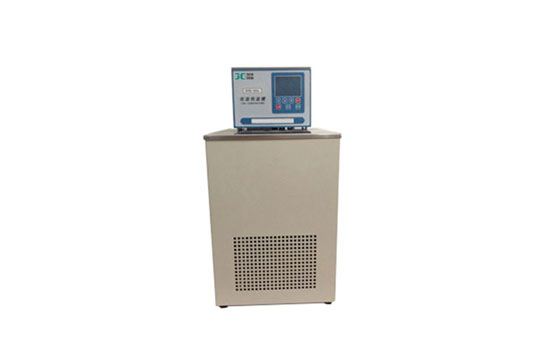

Product name：JC-L series Magnetic stirring cryogenic constant temperature bath -
Order number： -
Model：JC-L series -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
The magnetic stirring low-temperature constant temperature bath is specially designed with a magnetic stirring system, which can keep the sample in the beaker in the working chamber of the constant temperature bath and directly perform magnetic stirring at the same time. Stir. Precise control of high and low temperature synthesis, increase the uniformity of temperature in the reaction system. Widely used in laboratories, chemical plants, scientific research and other experiments and verification work.
2. Product parameters
model
Temperature range °C
temperature fluctuation degree ℃
Digital display resolution °C
Pump flow L/min
beaker capacity
ML
JC - 05-05L
-5 to 100
±0.1
0.1
6
500
JC - 10-05L
-10 to 100
±0.1
0.1
6
500
JC - 20-05L
-20 to 100
±0.1
0.1
6
500
J C -30-05L
-30 to 100
±0.1
0.1
6
500
JC - 40-05L
-40 to 100
±0.1
0.1
6
500
J C -05-1L
-5 to 100
±0.1
0.1
6
1000
JC - 10-1L
-10 to 100
±0.1
0.1
6
1000
JC - 20-1L
-20 to 100
±0.1
0.1
6
1000
JC - 30-1L
-30 to 100
±0.1
0.1
6
1000
JC - 40-1L
-40 to 100
±0.1
0.1
6
1000
J C -05-2L
-5 to 100
±0.1
0.1
6
2000
JC - 10-2L
-10 to 100
±0.1
0.1
6
2000
JC - 20-2L
-20 to 100
±0.1
0.1
6
2000
J C -30-2L
-30 to 100
±0.1
0.1
6
2000
JC - 40-2L
-40 to 100
±0.1
0.1
6
2000
J C -05-3L
-5 to 100
±0.1
0.1
6
3000
JC - 10-3L
-10 to 100
±0.1
0.1
6
3000
JC - 20-3L
-20 to 100
±0.1
0.1
6
3000
JC - 30-3L
-30 to 100
±0.1
0.1
6
3000
JC - 40-3L
-40 to 100
±0.1
0.1
6
3000
3. Product Features
1. The magnetic stirring low temperature constant temperature tank is fully enclosed with imported refrigeration compressors, and has a fluorine-free refrigeration system and has multiple protection devices such as overheating, overcurrent, and overpressure.
2. It has the function of internal and external circulation. The circulating pump can lead the medium in the tank to the outside to establish a second constant temperature field, which can play the role of cooling or constant temperature of the experimental container.
3. The magnetic stirring low temperature constant temperature tank adopts a new generation of imported automatic PID temperature setting program and imported temperature sensor, with high temperature control accuracy.
4. High-precision temperature control technology coupled with U-shaped double circulation system improves temperature uniformity.
5. Large-screen LCD display in both Chinese and English, the data is clear, the appearance is beautiful, and the personalized interface makes industrial control no longer monotonous.
6. The fuselage shell adopts mirror surface anti-aging electrostatic painting technology, and the inner tank table adopts high-quality S304 stainless steel, which is clean, hygienic, beautiful and corrosion-resistant.
7. This product has a magnetic stirring function, no external vertical mixer is required, and the operation is simple and convenient, and can realize the stirring reaction under a fully enclosed constant temperature.
8. There is a drain valve on the side, which is convenient for changing the medium.
9. Built-in various equipment protection devices:
1). Over-temperature protection device, buzzer alarm
2) The whole machine has power-off protection function3). It has low water level protection and buzzer alarm function to prevent machine failure caused by drying of the medium in the tank and explosion-proof function of the heating tube
●The following are the optional functions of the magnetic stirring low temperature thermostat
1. The optional communication interface can be operated synchronously with the PC.
2. Optional built-in 1~30-segment program for temperature control, automatic program temperature control, real-time display of set temperature and time program running status
3. Optional external temperature sensor function to achieve internal and external temperature setting, monitoring and Control the temperature of the external device system during external circulation.
4. Optionally, the cooling coil built into the tank can be re-arranged to control the exothermic reaction of the reaction tank.
5. Casters can be installed and disassembled according to customer requirements.
6. Accept customized products of various sizes or special requirements.
