PRODUCTS CENTER
-

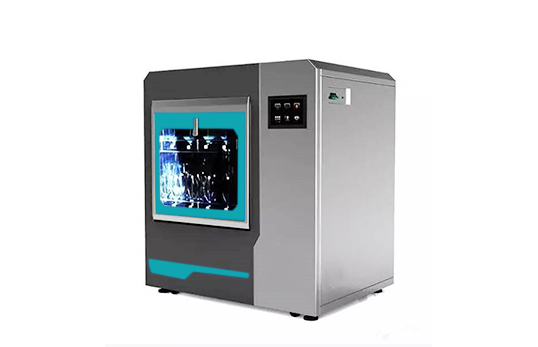

Product name：JC-XPJ-200 Automatic utensil washing machine -
Order number： -
Model：JC-XPJ-200 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
Fully automatic utensil cleaningThe machine is suitable for cleaning and drying of sample bottles, test tubes, beakers, pipettes, triangular flasks, volumetric flasks and other utensils in various laboratories such as scientific research institutes, environmental protection, water systems, petrochemical systems, and power systems.
2. Product parameters:
model
JC-XPJ-200
Effective volume (L)
200
Dimensions (W*D*H)mm
980*740*1080
Inner cavity size(W*D*H)mm
600*629*635
Voltage (V/Hz)
220/50-60
Water circulation flow (L/min)
800 (imported from Europe)
Water heating power (KW)
5
Dry running power (KW)
2.1
High operating power (KW)
6
Water consumption/cycle (L)
15
Noise (dBa)
<50
Inlet water pressure (Mpa)
0.3-1.0
3. Product features:
Technology TWINS cleaning and drying system, to achieve in-situ cleaning and drying of utensils;
Material: Cleaning chamber: SUS316L, shell: SUS304
high cleanliness
1. High-efficiency circulating pump imported from Europe, stable and reliable cleaning pressure;
2. Basis The principle of fluid mechanics is designed to arrange the cleaning positions to ensure the cleanliness of each item;
3. The rotating spray arm of the optimally designed flat-mouth nozzle ensures that the spray is 360° without dead angle coverage;
4. The oblique cut on the side of the cleaning column ensures the utensils 360° cleaning coverage of the inner wall;
5. Height-adjustable bracket to ensure effective cleaning of utensils of different specifications;
6. Double water temperature control to ensure the entire cleaning water temperature;
7. Cleaning liquid can be set and automatically added;
efficient drying
1. In situ Drying system
2. Built-in HEPA high-efficiency filter to ensure the cleanliness of the drying air;
3. Synchronous drying water circulation pipeline to avoid moisture pollution of the pipeline to the cleaning system;
4. Double air temperature control to ensure drying temperature;
protection function
1. Two-point type Electronic door lock to prevent random opening;
2. Dual temperature protection of water temperature and air temperature; 3.
Automatic protection of circulating pump high temperature;
4. Power failure protection function ; Cleaning of general contaminated utensils; quick cleaning program: to meet the cleaning of lightly contaminated utensils; custom cleaning program: according to different cleaning needs, users can customize the combined cleaning program ; possible residual limescale;
Drying program: Equipped with a high-performance drying system, which can quickly complete the drying and cleaning of various instruments;
Manual test program: It can meet the requirements of users to take water samples to detect the cleaning and clean rate, as well as the running status of each component of the self-inspection equipment.
