Lab bot.washer&washer
Laboratory automatic cleaning machine
Laboratory automatic cleaning machine

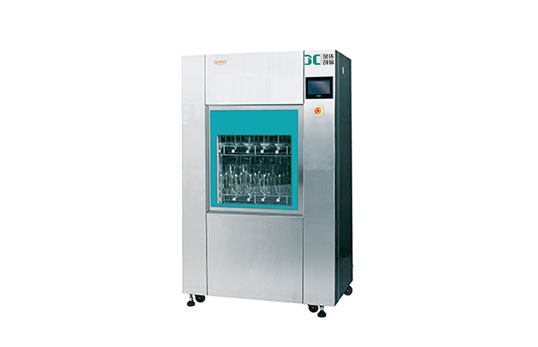

JC-XPJ-420 Laboratory automatic cleaning machine
  • Product name:JC-XPJ-420 Laboratory automatic cleaning machine
  • Order number:
  • Model:JC-XPJ-420
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    Laboratory automatic washing machine, also known as laboratory washing machine, automatic washing machine, laboratory bottle washing machine; is the core product of Qingdao Juchuang Environmental Protection Equipment Co., Ltd., mainly suitable for scientific research institutes, environmental protection, water systems, petrochemical Cleaning and drying of sample bottles, test tubes, beakers, pipettes, triangular flasks, volumetric flasks and other utensils in various laboratories such as systems and power systems.


    2. Product parameters


    model

    JC-XPJ-420

    Effective volume (L)

    420

    Dimensions (W*D*H)mm

    1110*900*2165

    Inner cavity size(W*D*H)mm

    688*700*703

    Voltage (V/Hz)

    220/50-60 380/50-60

    Water circulation flow (L/min)

    1000

    Water heating power (KW)

    5/15

    Dry running power (KW)

    3.6

    High operating power (KW)

    6.5/18

    Water consumption/cycle (L)

    25

    Noise (dBa)

    <55

    Inlet water pressure (Mpa)

    0.3-1.0


    3. Product Features


    ●Technical TWINS cleaning and drying system to realize in-situ cleaning and drying of utensils;

    ●Material: Cleaning chamber: SUS316L, shell: SUS304


    ■High cleanliness


    1. High-efficiency circulating pump imported from Europe, the cleaning pressure is stable and reliable;

    2. Design and arrange the cleaning positions according to the principle of fluid mechanics to ensure the cleanliness of each item;

    3. The rotating spray arm of the optimally designed flat-mouth nozzle ensures that the spray is 360° without dead angle coverage;

    4. The oblique cut on the side of the cleaning column ensures 360° cleaning and coverage of the inner wall of the vessel;

    5. Height-adjustable bracket to ensure effective cleaning of utensils of different specifications;

    6. Double water temperature control to ensure the entire cleaning water temperature;

    7. The cleaning solution can be set and added automatically;


    ■Efficient drying


    1. In-situ drying system

    2. Built-in HEPA high-efficiency filter to ensure the cleanliness of dry air;

    3. Synchronize the drying water circulation pipeline to avoid the wet pipeline contaminating the cleaning system;

    4. Double air temperature control to ensure drying temperature;


    ■Protection function


    1. Two-point electronic door lock to prevent random opening;

    2. Double temperature protection of water temperature and air temperature;

    3. High temperature automatic protection of circulating pump;

    4. Power-off protection function;

    5. The water seal design of the drainage pipeline prevents the backflow of sewage;


    ■Cleaning program


    1. Standard procedure: meet the cleaning of general contaminated utensils;

    2. Quick cleaning procedure: meet the cleaning of lightly polluted utensils;

    3. Custom cleaning program: According to different cleaning needs, users can customize the combined cleaning program;

    4. Self-cleaning cleaning program: You can choose to clean the circulating pipeline and the scale that may remain in the inner cavity on a regular basis;

    5. Drying procedure: Equipped with a high-performance drying system, which can quickly complete the drying and cleaning of various instruments;

    6. Manual test procedure: It can meet the requirements of the user to take water samples to detect the cleaning and cleanliness rate, as well as the running status of each component of the self-checking equipment.
