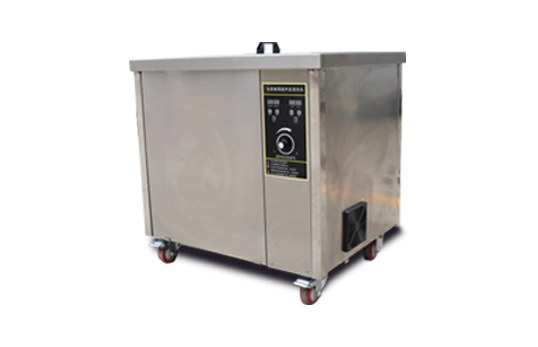

Product name：JC-QX-210L Industrial Ultrasonic Cleaner -
Order number： -
Model：JC-QX-210L -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
In addition to its own cleaning functions, industrial ultrasonic cleaners also have various functions such as extraction, emulsification, accelerated dissolution, pulverization, and dispersion. The cleaning involved in the labor process of industrial production belongs to the category of industrial cleaning, food industry, textile industry, paper industry, printing industry, petroleum processing industry, transportation industry, electric power industry, metal processing industry, machinery industry, automobile manufacturing, instruments Instruments, electronic industry, post and telecommunications, household appliances, medical instruments, optical products, military equipment, aerospace, atomic energy industry, etc. are widely used in cleaning.
2. Product parameters
1. Capacity: 210L
2. Ultrasonic frequency: 28/40KHZ
3. Number of vibrators: 42
4. Ultrasonic power: 2100W
5. Heating power: 6KW
6. Heating accessories: stainless steel heating tube
7. Capacity: 210L
8. Inner groove size: 700*600*500mm
9. Dimensions: 920*820*720mm
10. Inner tank material: imported SUS304 stainless steel
11. Shell material: 8K 201 stainless steel
12. Ultrasonic generator: anti-corrosion and dust-proof digital display
13. Time adjustable: 1-9999S
14. Adjustable temperature: normal temperature -100℃
15. Drain: standard 1 inch water pipe
16. Product accessories: standard stainless steel cleaning basket, stainless steel muffler cover
3. Product Features
1: All stainless steel shell, inner tank (thicker type is more durable) and cover
2: The cleaning effect of the high-power transducer is remarkable, which can be observed with the naked eye
3: Use ordinary tap water, alcohol or solvent as cleaning solution
4: The waterproof performance is greatly improved, and the product is safer
5: The object shines after cleaning
7: CNC operation, more accurate timing and heating
8: Clean the dead corner of the workpiece
9: Batch cleaning of various workpieces
10: Multifunctional cleaning
11: Shorten working time
