Product name：WIGGENS Fuego series Bunsen burner -
Order number： -
Model： -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction

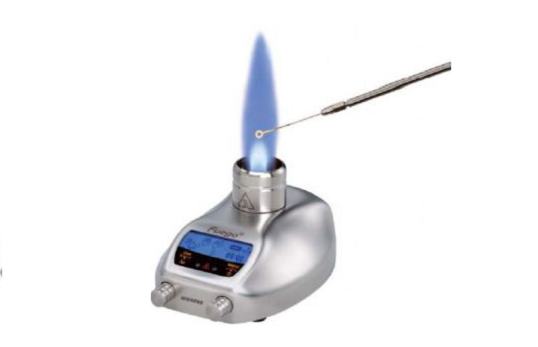

WIGGENS Fuego series Bunsen burner provides continuous, stable, high temperature, convenient and absolutely safe flame for laboratories, which is a milestone in Bunsen burner manufacturing technology. Fuego, Fuego Pro consists of four models, which can meet the demanding requirements of the laboratory for flame work.
2. Product parameters
Function description
basic fire
Fire Basic RF
fire SCS
Fire SCS Pro
control mode
Microcomputer control
Microcomputer control
Microcomputer control
Microcomputer control
LCD display
without
without
Graphical self-navigating LCD display
Graphical self-navigating LCD display
Infrared sensor
not optional
not optional
Standard
Standard
SCS Security Control
Standard
Standard
Standard
Standard
operating mode
1. The knob turns on, off and adjusts the Bunsen burner
1. The knob turns on, off and adjusts the Bunsen burner
1. The knob turns on, off and adjusts the Bunsen burner
2. Wiring to foot pedal:
2. Wireless foot pedal:
2. Infrared sensor controller (standard):
2.1 Standard mode, continuous foot pedal work
2.1 Standard mode, continuous foot pedal work
2.1 Timer switch: 1 second~2 hours
2.2 Pedal timing on and off: 1 hour
2.2 Pedal timing on and off: 1 hour
2.2 Timed off: 0 seconds~2 hours
3. Wiring to foot pedal:
3.1 Standard mode, continuous foot pedal work
3.2 Foot pedal timing on and off: 1 second~2 hours
4. Optional external temperature sensor
4.1 Timing function: 1 second ~ 2 hours
4.2 Automatically control the temperature of the heating medium, +35--+350℃
Safety Alert
1. Sound alarm; 2. Residual heat prompt
1. Sound alarm; 2. Residual heat prompt
1. Sound alarm; 2. Residual heat prompt
1. Sound alarm; 2. Residual heat prompt
Rechargeable Battery
without
without
without
Li-Ion, 6V, 9 hours
Optional gas types
Liquefied gas 20~50mbar; natural gas E/LL, 18~25mbar
Liquefied gas 20~50mbar; natural gas E/LL, 18~25mbar
Air consumption
70g/h
70g/h
temperature
1350℃ (liquefied gas); 1300℃ (natural gas)
1350℃ (liquefied gas); 1300℃ (natural gas)
power
1kW
1kW
power supply
100 - 240 V / 50/60 Hz / max. 0.3 A
100 - 240 V / 50/60 Hz / max. 0.3 A
Igniter port size
φ23 mm
φ23 mm
size
103 x 49 x 130 mm
103 x 49 x 130 mm
weight
700g
700g
Standards compliant
DIN / CE / EEC
DIN / CE / EEC
3. Product Features
* Adopt streamlined shape design, refer to the principle of automobile aerodynamics, avoid the interference of the surrounding air flow on the flame to the greatest extent, and can form a constant blue flame with flame temperature and flame shape
* Microprocessor control technology, control and monitor at any time The working status of the instrument
* Top safety settings to ensure the absolute operational safety of the Bunsen burner:
1. SCS safety control system, which can continuously monitor the working status of the Bunsen burner, including gas supply, ignition control; flame temperature
monitoring and control; overheating Automatic cut-off, gas safety cut-off and other functions;
2. BHC igniter protection program: continuous monitoring of whether the combustion head is blocked by liquid or solid pollutants, whether the installation position of the combustion head is correct, etc.;
3. For the Bunsen burner that has just been used and has not been cooled , There is a high temperature burning head prompt function to protect users from being scalded
* The streamlined shape design without sharp corners is easy to clean, the splashed liquid can flow out through the built-in diversion groove, and the solid particles can be easily removed from the burning head. Clean, you can also simply disassemble the burner head, deep clean the burner head, and then easily restore to ensure burning effect and sterilization effect
* Stainless steel one-time molded housing, durable, all external parts are insulated
* Move the bottom shrapnel in different directions, you can tilt the Bunsen burner to the left or right. Use the
knob to start, close and adjust the Bunsen burner, touch the switch knob, you can switch the Bunsen burner, you can also use the standard The wire-connected foot pedal can start and stop the Bunsen burner, which can meet the needs of short-term flames in the laboratory, or the needs of continuous heating and sterilization.
*Fuego Basic RF: Standard wireless foot pedal to meet the needs of clean and tidy laboratories, effective Control distance 2-5m
