Oscillator
Orbital Shaker
Orbital Shaker

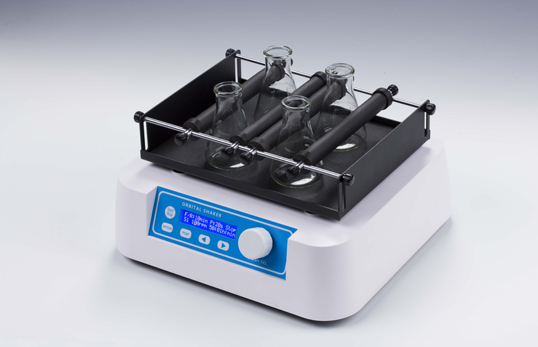

JC-GD-20 Orbital Shaker
  • Product name:JC-GD-20 Orbital Shaker
  • Order number:
  • Model:JC-GD-20
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    JC-GD-20 orbital shaker adopts DC brushless motor and microcomputer control technology. The unique knob operation mode is simple and easy to use. By changing different trays, it can mix and cultivate various common flasks, petri dishes and beakers.


    2. Product parameters


    project

    parameter

    time setting

    1min ~ 99h59min

    Forward and reverse function

    support

    Forward and reverse time setting

    0-99min

    Pause time

    0-99sec

    range of rotation

    50 250Rpm

    Amplitude

    20mm

    load capacity

    2.5kg

    Power

    AC110V~240V 50/60Hz

    input power

    35W

    Dimensions (mm)

    350×320×130 (with T P-1 tray)

    Weight ( kg )

    8.2kg (with T P-1 tray)



    Tray model

    Sample size

    Remark

    TP -1

    8 standard petri dishes

    Universal tray

    P-2

    4 x 250mL or 6 x 100mL flasks

    adjustable tray

    P-3 ( 100ml )

    12 x 100mL flasks

    100mL Flask Tray

    P-3 ( 250ml )

    6 x 250mL flasks

    250mL flask tray


    3. Product Features


    1. LCD real-time display timing time and speed value;

    2. With forward and reverse rotation and pause functions, it can run intermittently;

    3. A variety of trays are available for a wide range of needs;

    4. Soft start, uniform acceleration, effectively avoid sample splashing;

    5. Driven by brushless DC motor, accurate speed, long life and maintenance-free.
