1. Product introduction

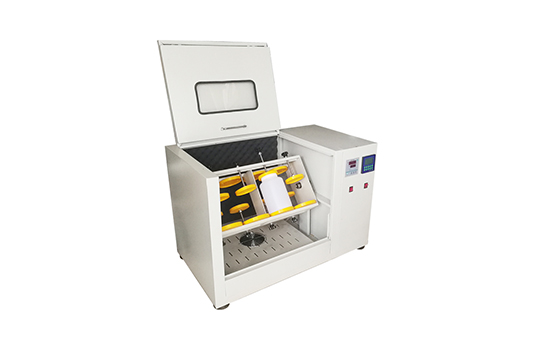

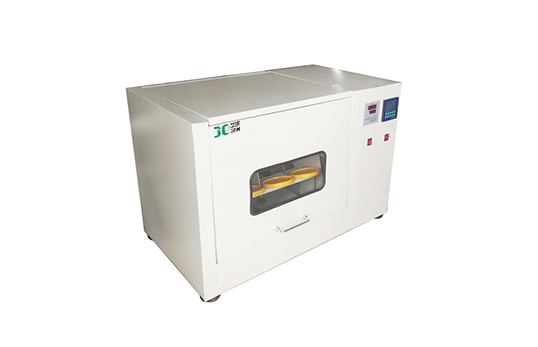

JC-GGC4000 automatic constant temperature inversion oscillator is suitable for solid waste leaching toxicity inversion method. It is the equipment stipulated in the environmental protection industry standard of the People's Republic of China "Solid Waste Leaching Toxicity Method Sulfuric Acid Nitric Acid Method" (HJ/T299-2007) and "Solid Waste Leaching Toxicity Method Acetic Acid Buffer Leachate Method" (HJ/T300-2007). It is widely used in related industries such as environmental protection, solid waste disposal and solid waste toxicity identification, research, treatment and disposal. It is also suitable for production experiments and scientific research in scientific research, chemical industry, teaching and other industries. Complete functions, large load-bearing capacity, stable rotation speed, long-term continuous and stable operation, and low noise.

Scope of application: environmental monitoring, university laboratories, chemical plants, academies of agricultural sciences, fertilizer plants, forestry departments, quality supervision, food and customs laboratories.

2. Product parameters

1. Meet the requirements of the standard "Solid Waste Leaching Toxicity Leaching Method Sulfuric Acid Nitric Acid Method" (HJ/T299-2007) and "Solid Waste Leaching Toxicity Leaching Method Acetic Acid Buffer Solution Method" (HJ/T300-2007).
2. It is suitable for leaching toxicity identification of inorganic pollutants and volatile/semi-volatile organic pollutants in solid waste.
3. The flipping oscillator can work continuously for more than 10 hours.
4. Number of samples: 8 bottles,
5. Rotation speed: 0-90 rpm, digital display adjustable;
6. Turnover mode: It can be rotated forward for a period of time and then reversed for a period of time, or it can be rotated forward without interruption 7. Time setting: full digital timing, optional lm- 99H99m
for seconds, minutes, and hours can be set arbitrarily;
8. Safety device: open flip, leakage protection device, overload protection device.
9. Applicable containers: 2000ml glass bottle, PE bottle and ZHE container.
10. Temperature control range: room temperature -60℃ (microcomputer digital display intelligent temperature control)
11. Temperature control accuracy: ±0.5℃
12. Power supply voltage: 220V 50HZ

3. Product features

1. Adopt intelligent constant speed controller, complete functions and simple operation
2. Using high-power stepping motor, large load capacity, stable rotation speed and low noise
3. The synchronous wheel and synchronous belt are used in the transmission device, which can ensure continuous and stable operation for a long time, and the rotation speed is accurate
4. Using microcomputer intelligent temperature control instrument, PID temperature control program, accurate temperature control
