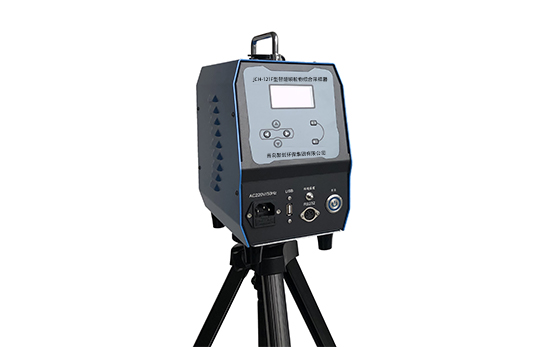

JCH-121F Intelligent Particulate Matter Comprehensive Sampler
  • Product name:JCH-121F Intelligent Particulate Matter Comprehensive Sampler
  • Order number:
  • Model:JCH-121F
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    JCH-121F intelligent particulate matter comprehensive sampler is a multi-functional sampling instrument integrating TSP\PM10\PM2.5 particulate matter and microorganisms. It is equipped with an international six -stage Anderson cutter to realize sampling and monitoring of air microorganisms. Widely used in disease control, clean laboratory, food, scientific research and teaching, public environmental sanitation and environmental monitoring and other fields.


    2. Product parameters


    The main parameters

    parameter range

    Resolution

    Accuracy

    Sampling flow

    (10 ~ 1 50 )L / min

    Microorganism ( 10-50 ) L/min , default 28.3 L/min

    Particulate matter ( 50 ~ 150 ) L/min , default 100 L/min

    0.1L/min

    ≤± 2.5%

    way to control

    Manual or automatic, set the switch time arbitrarily within 24 hours

    Effective diameter of filter membrane

    Particulate filter membrane area φ 90mm Effective area φ 80mm

    Flow stability

    ≤ 3% ( 3Kpa ~6Kpa in resistance change , grid fluctuation ≤± 10% )

    load capacity

    When the flow rate is 28.3L/min , the load is ≥ 30kPa

    Microorganism collection device

    ( 9cm ) standard petri dish

    Measuring range

    Capture rate >98%

    Timing accuracy

    24 hours ± 2S

    Capture particle range

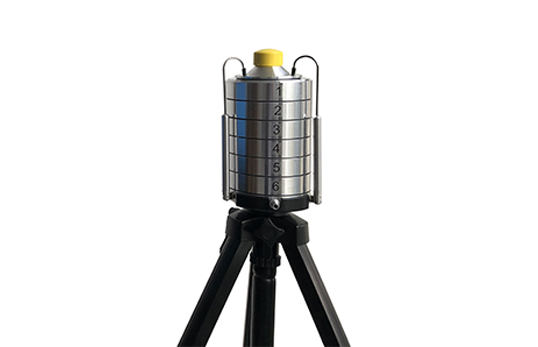

    The particle size of the 6 -stage sampling head is: 1st grade : ≥ 7 μm , 2nd grade: 4.7-7 μm , 3rd grade: 3.3-4.7μm , 4th grade: 2.1-3.3μm 5th grade : 1.1-2.1 μm m, Class 6 : 0.65-1.1 μm

    Number of samples

    1 to 99 times

    pre-meter temperature

    ( -30 ~ + 99 )℃

    0.1 ℃

    ≤± 1 ℃

    atmospheric pressure

    (70~130)Kpa

    0.1Kpa

    ≤± 2.5%

    Working power

    AC220V 50Hz (custom built-in large capacity lithium battery )

    noise

    <50dB(A)

    Power consumption

    <100W

    Dimensions

    ( L250 × W150 × H260 ) mm _ _

    Total Weight

    About 3kg (without lithium battery)


    3. Product Features


    1. It has small size, light weight, low noise, high intelligence, stable flow, reliable operation, built-in heater, pictures and texts, and integrates the collection of microorganisms and particulate matter.

    2. Adopt imported wide temperature OLED display, good man-machine interface with pictures and texts, easy to operate, humanized Chinese graphic display, can work in ultra-low temperature environment.

    3. There are multiple sampling methods such as simultaneous sampling, individual sampling, multiple sampling, every other day sampling, and cyclic sampling , which can effectively prevent the sampling personnel from being exposed to the microbial space for a long time.

    4. The imported brushless motor air pump is adopted, which has high reliability for long-term continuous operation, low noise, long service life, and the trouble-free running time is more than 20,000 hours.

    5. Real-time clock, with timing sampling, interval sampling, multiple sampling, cyclic sampling and other sampling methods for users to choose and use.

    6. Automatically save data during AC power failure. Automatically resume sampling when AC incoming calls, automatically deduct the power-down time during the sampling process, and allow users to query the power-down time.

    7. The sampler is designed with an automatic save function, which will be used first when it is turned on next time. Automatic fault protection function, automatic shutdown protection if the set flow rate is not reached within the specified time.

    8. The instrument can be equipped with a built-in large-capacity imported lithium battery, which can work continuously for a long time in places without AC power.

    9. Optional Anderson level 2 , level 6 , level 8 cutters and impact absorption bottles, with a sampling flow rate of 28.3L/min ;

    10. Automatic flow control , embedded software design, automatic calculation of sampling volume, automatic memory of sampling data, priority use next time it is turned on, and one-click sampling.

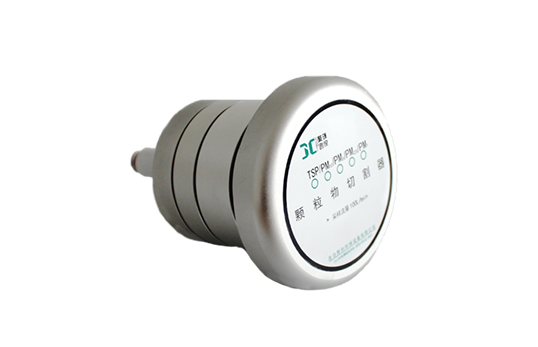

    11. Standard TSP, optional PM10 , PM2.5 , PM1 , cutters are made of aluminum alloy, anti-static adsorption.

    12. Standard time, delay time, sampling time, sampling times, cumulative flow, instantaneous flow, atmospheric pressure and other parameters

    show.

    13. The user can calibrate the instrument through the keyboard. Maintenance requires a password to enter to ensure the security of the instrument data and will not be easily accessed.

    Modify the error, and provide the function of restoring the factory settings.

    14. The optional RS232 interface is connected to a micro-printer for data printing, and it can also be exported through a U disk and the host can automatically identify the capacity of the U disk.
