1. Product introduction

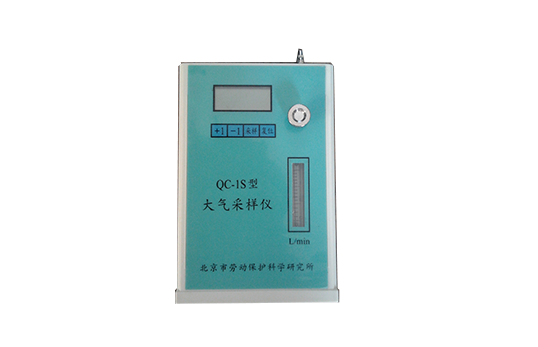

QC-1S atmospheric sampler has the function of LCD digital display time. It is a conventional instrument for collecting gas samples in working environment or atmospheric environment.

2. Product parameters

1. Load capacity: flow rate ≥ 1L/min under 4000Pa load

2. Flow range: 0.1-1.5L/min

3. Flow stability: ≤5%

4. Flow error: ≤±5%

5. Timing range: 1-99min

6. Timing error: <0.1%

7. Working temperature: -10-45℃

8. Continuous working time: use the battery for more than 6 hours

9. Dimensions of the host: 100*150*52mm

10. Weight (including battery): 550g

3. Product Features

QC-1S type atmospheric sampler has the advantages of electronic timing function and compact rhythm, small size, stable and reliable performance, etc. It is an ideal product among domestic atmospheric samplers.
