1. Product introduction

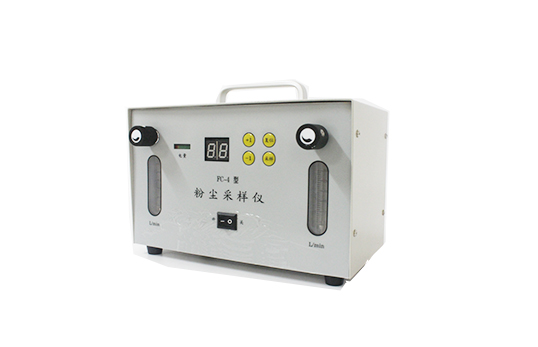

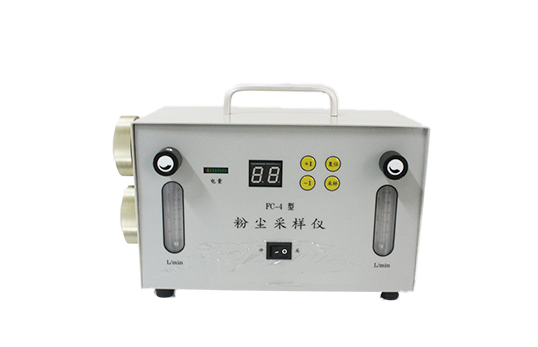

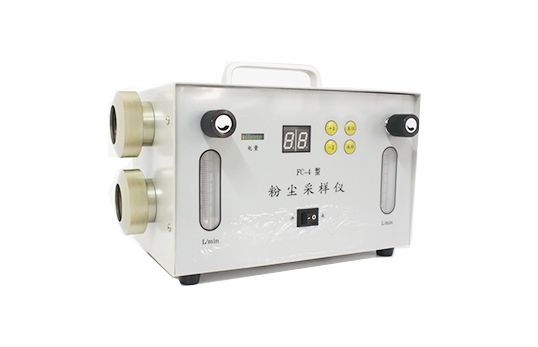

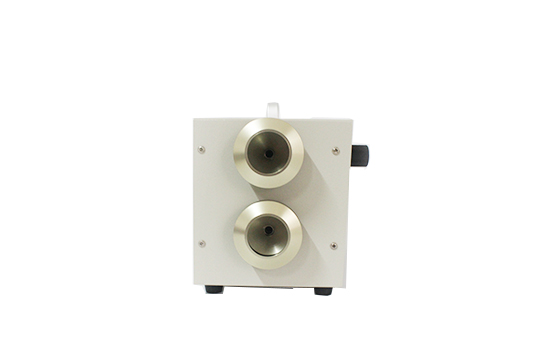

The FC-4 dust sampler is an instrument used to measure the dust concentration in the air environment. It consists of two suction pumps to form an independent gas circuit system, which can collect two gas samples or balance samples at the same time, making the sampling work fast and efficient. reliable.

2. Product parameters

1. Flow range: 5～30L/min continuously adjustable (dual gas path)

2. Negative suction pressure: > 2500Pa

3. Flow meter accuracy: 2.5 class

4. Timing range: 0～99min error≤0.1%

5. Continuous working time: use the battery for more than 3 hours

6, working conditions: temperature 0 ~ 40 ℃ relative humidity <95%

7. Working current: < 1.2A

8. Dimensions of the host: 235mm*140mm*135mm

9. Host weight: 3.7kg

3. Product Features

The sampler uses an aluminum alloy packaging box, which is easy to carry, easy to operate, and durable.
