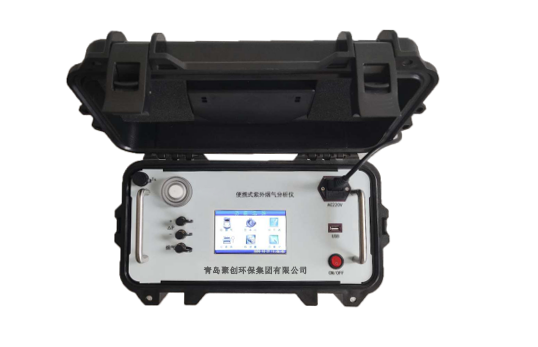

JCY-80T Portable UV Flue Gas Analyzer
  • Product name:JCY-80T Portable UV Flue Gas Analyzer
  • Order number:
  • Model:JCY-80T
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction

  • 1. Product Features


    Imported high-precision differential pressure sensor is adopted, with small sensor drift and high measurement accuracy;

    Using UV differential absorption spectroscopy technology, high measurement accuracy, fast measurement speed, simultaneous detection of multiple components, and strong anti-interference;

    It can be widely used in fixed pollution source emission monitoring, industrial gas analysis, process measurement technology and other fields;

    The electrochemical sensor is designed together with the circuit board, which is simple and convenient for users to upgrade and replace;

    Adopt integrated design to reduce external interference and easy to use;

    Automatically calculate parameters such as the average flow rate, average pressure, and flue gas flow of the gas.

    With automatic zero point correction, software calibration function to ensure measurement accuracy;

    With the function of flue distribution, it can automatically recommend the number of measurement points and the distance between the measurement points;

    Large-capacity data storage, can store 10,000 sets of data files;

    Large size, wide temperature highlight display;

    Built-in bluetooth module, optional bluetooth printer for data printing.


    2. Product parameters


    Technical indicators

    parameter range

    Resolution

    Accuracy

    flue gas pressure

    (0 to 2500) Pa

    0.1Pa

    not more than ± 2.0%

    flue gas static pressure

    (-35 to +35) kPa

    0.01 kPa

    not more than ± 2.0%

    flue gas temperature

    (0 to 400) °C

    0.1 ℃

    not more than ± 2 ℃

    atmospheric pressure

    (60 to 130) kPa

    0.01 kPa

    Not more than 500Pa

    Sampling flow

    1L/min

    0.1 m/s

    not more than ± 5.0%

    O2 (optional)

    0-25%

    0.1%

    ≤ 5%

    CO (optional)

    (0-1300)mg/m3

    0.1%

    ≤ 5%

    Dimensions (L×W×H)

    417mm × 234mm × 318mm

    weight

    <7Kg

    SO2 low range

    (0 ~ 430)mg/m3

    SO2 high range

    (0 ~ 4300)mg/m3

    NO range

    (0 ~ 1340)mg/m3

    NO2 range

    (0 ~ 1030)mg/m3

    Indication error

    ≤ 2%

    Response time

    T90 < 30s ( air flow 1L/min

    Limit sampling volume

    9999.9L

    Machine power consumption

    < 110W ( preheating for 10-20 minutes after power-on); rated power < 18W

    Operating temperature

    ( -20 ~+45 )℃

    Relative humidity

    ≤ 95%RH

    Working power

    Input AC220 output DC 12V
