Product name：JCY-80Z UV differential flue gas analyzer-smoke and flue gas tester -
Order number： -
Model：JCY-80Z -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1.Product introduction

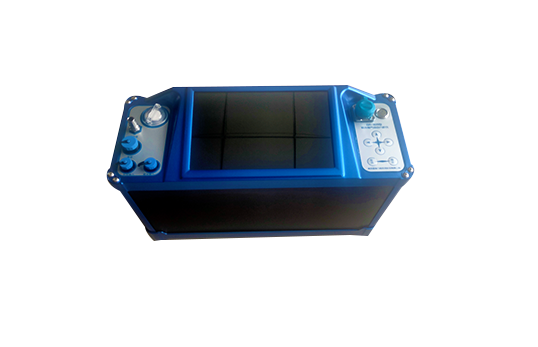

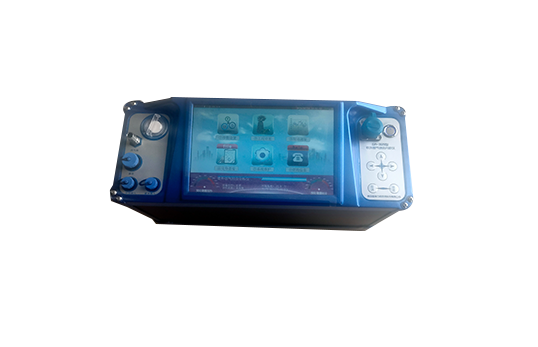

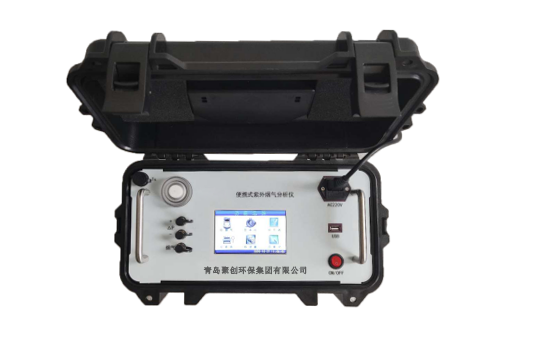

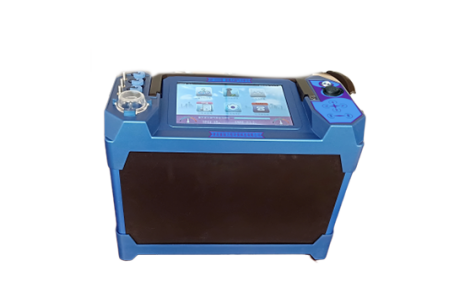

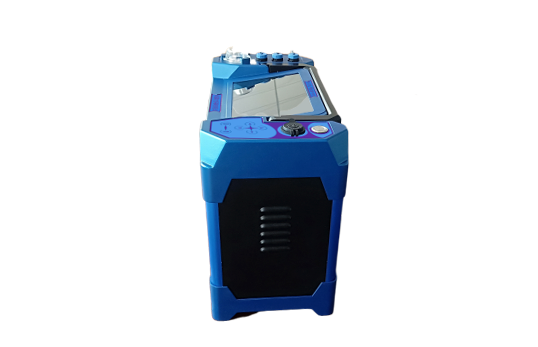

JCY-80Z UV differential flue gas comprehensive analyzer (hereinafter referred to as the analyzer) is a new product with UV differential absorption spectroscopy technology as the core. It is mainly used for the measurement of harmful gas components in exhaust pipes, and is widely used in the environment. Monitoring and thermal parameter measurement departments. The concentration of SO2, NO, NO2, O2, CO, CO2, H2S and other gases is measured by ultraviolet differential absorption spectroscopy technology and chemometrics algorithm, which is not affected by water vapor in flue gas, and has high measurement accuracy and stability, especially Suitable for measurement in high humidity and low sulfur conditions.
2. Product parameters
The main parameters
parameter range
Resolution
Accuracy
flue gas temperature
(-50~500)℃
0.1℃
better than ±3℃
Isokinetic Sampling Flow Rate
(2~45)m/s
0.1m/s
better than ±5%
flue gas pressure
(0~2000)Pa
1Pa
Better than ±1%FS
flue gas static pressure
(-35～+35)kPa
0.01kPa
Better than ±1%FS
Flue gas sampling flow
1.5L/min
Dimensions (LxWxH)
470x192x365mm
weight
12Kg
power
<150W
Working power
DC12-26V/AC220V
cigarette
gas
concentrated
Spend
O2
(0～30)%
0.1%
Indication error : better than ±5.0%
Repeatability: ≤2.0%
Response time: ≤90s
stability:
Change of indication value within 1 hour≤5.0%
SO2
Low range: (0～600) mg/m3
0.1mg/m3
High range: (600～4000) mg/m3
0.1mg/m3
NO
Low range: (0～600) mg/m3
0.1mg/m3
High range: (600～1200) mg/m3
0.1mg/m3
NO2
Low range: (0～500) mg/m3
0.1mg/m3
High range: (500～1000) mg/m 3
0.1mg/m3
H2S (optional)
(0～300)mg/m3
0.1mg/m3
CO (optional)
(0～5000)mg/m3
0.1mg/m3
CO2 (optional)
(0～20)%
0.01%
3. Product Features
1. Using UV spectral differential absorption technology (DOAS) to measure the concentration of SO2, NO, NO2 and other gases in the exhaust gas of fixed pollution sources, the measurement accuracy is high, and it is not affected by water vapor in the flue gas, especially suitable for high humidity and low sulfur conditions.
2. The core components have independent intellectual property rights, and the key components are equipped with measures such as constant temperature and shock absorption devices, which can effectively avoid data drift and improve the accuracy of test data.
3. Dual-range design, automatically switch between high and low ranges according to the high and low concentration values of the emission concentration.
4. Pitot tube, flue gas sampling tube and flue gas pre-conditioner are three-in-one, which is convenient for on-site use and improves work efficiency.
5. Ultraviolet light source pulse xenon lamp, short warm-up time and long service life.
6. 10.1-inch bright color touch screen, beautiful interface, easy to operate, compatible with touch screen and key operation.
7. Built-in lithium battery, the battery working time is more than 4 hours.
8. AC and DC dual-purpose: AC input 80-264V, strong on-site adaptability, especially for industrial sites with high electromagnetic interference; DC wide-voltage input, input voltage 12-26V, with under-voltage, over-voltage, reverse connection protection functions, effective Protect the instrument from damage.
9. The whole machine adopts electromagnetic compatibility and electrostatic protection design, which can effectively resist on-site static electricity and electromagnetic interference.
10. Large-capacity memory is used to store minute data and total average data in real time, and measurement data can be exported through U disk.
11. Real-time query detection data, standard Bluetooth printer, on-site printing.
12. The monitoring projects of CO, CO2, H2S, CS2, NH3, C6H6 can be expanded.
13. Optional IoT module to realize remote data transmission and IoT networking.
