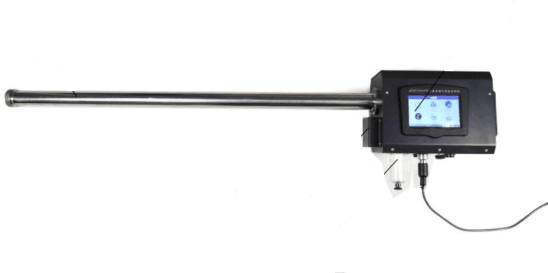

JCY-80J Portable UV Flue Gas Analyzer
  • Product name:JCY-80J Portable UV Flue Gas Analyzer
  • Order number:
  • Model:JCY-80J
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product Brief


    This product integrates advanced technologies such as optics, spectroscopy, computer, electrochemistry, etc. to measure harmful gas components in exhaust gas pipes of stationary pollution sources, and uses ultraviolet method to measure SO2, NO, NO2, electrochemical method to measure O2, CO, and infrared method to measure CO2 The core of the instrument adopts imported optical components and high-performance long-life pulsed xenon lamp, which has the characteristics of high measurement accuracy, high reliability, fast response time and long service life.


    Scope of application


    1. Determination of emission concentration, converted concentration and total emission of SO2, NOX and other harmful gases in various boilers and industrial furnaces.

    2. Determination of flue gas oxygen content and air excess coefficient.

    3. Evaluation and calibration of measurement accuracy of continuous flue gas measurement instruments.

    4. Other applicable occasions.


    2. Performance characteristics


    1. Integrated structure design

    The integrated design of the main sampling tube is compact, small in size, light in weight, and easy to carry.

    2. High-efficiency thermal insulation pipe

    The outer tube of the sampling tube adopts an ultra-thin thermal insulation design, which has a good thermal insulation effect. The constant temperature technology combined with the intelligent algorithm keeps the temperature of the gas pool constant during the sampling process , and the measurement results are accurate.

    3. Three-stage dust filter design

    The intake pipeline adopts three-stage filtration, and the titanium filter element and the tetrafluoro filter element are used in series to filter dust efficiently, which greatly reduces the entry of particulate matter into the air chamber, effectively reduces the failure rate of the instrument, and prolongs the maintenance period.

    4. High-efficiency droplet filtration

    The high-efficiency droplet filter device is adopted to effectively prevent the droplets in the pipeline from entering the sampling tube and improve the measurement accuracy.

    5. High-efficiency water vapor condensation device

    The condensing device made of high-efficiency heat-conducting materials can directly cool the high-temperature gas to the ambient temperature without a refrigeration device, effectively protecting the sampling pump and the electrochemical sensor.

    6. The use of UV xenon lamp has a long service life

    Imported pulsed xenon lamp light source is used, no warm-up time, and a service life of more than 10,000 hours, which is three times that of a deuterium lamp, reducing maintenance costs.

    7. Accurate NO2 measurement

    Using 400nm-450nm spectrum to measure NO2, there is no gas cross-interference, and the data is stable and accurate.

    8. Integrated design of intake pipeline and gas pool

    The integrated design of the intake pipeline and the gas pool, and the shock-absorbing buffer device made of high-temperature materials is used between the thermal insulation pipe to avoid the impact of vibration on the instrument during transportation and use. The temperature of the road and the gas pool is higher than 120 degrees, which can effectively avoid the adsorption of condensed water and ensure the accurate measurement of SO2 data.

    9. Ultra-wide range gas measurement

    Adopt advanced algorithm, with automatic switching function of high and low range, suitable for many occasions.

    10. Wide range of application, can work in hot or cold environment

    The artificial intelligence algorithm PID adjustment is adopted, and the parameters are automatically adjusted to ensure the constant temperature of key components such as spectrometer and xenon lamp, and to ensure the measurement accuracy, so that the analyzer can be used in extremely hot or cold environments.

    11. Industrial-grade high-speed embedded industrial computer core

    It adopts industrial-grade high-speed embedded industrial computer design, supports Chinese input, and the system has built-in large-capacity data memory, which can store more than 100,000 sets of measurement data for query, printing or computer communication.

    12. Adopt 5-inch high-brightness color display

    Adopt 5-inch high brightness, wide temperature TFT color display, suitable for outdoor ambient temperature (-20 ~ 70)

    13. Fault detection function

    It has the function of fault self-checking, which can detect communication faults and common devices and functions and generate fault reports to facilitate the maintenance and use of users.


    3. Technical indicators


    The main parameters

    parameter range

    Resolution

    Accuracy

    Sampling flow

    0.8 L/min

    0.1L/min

    /

    atmospheric pressure

    (50130) kPa

    0.01kPa

    ≤±0.50kPa

    Air excess coefficient

    199.99

    0.01

    ≤±2.5%

    data storage

    1000000 groups

    Operating temperature

    (-20+50)

    Working power

    AC 220V±10%, 50HZ

    Host size

    (L1200×W130×H180)mm

    Host weight

    about 6kg

    Power consumption

    <200w

    O2 (electrochemical)

    (030)%

    0.1%

    Indication error: ≤± 5%

    Repeatability: 2.0% Response time: 90 s

    Stability: Change of indication value within 1 hour <5%

    SO2 (UV)

    Low range (0572) mg/m3

    0.1mg/m3

    SO2 (UV)

    High range (0-5720) mg/m3

    0.1mg/m3

    NO

    (UV)

    Low range (0-268) mg/m3

    0.1mg/m3

    NO

    (UV)

    High range (0-1340) mg/m3

    0.1mg/m3

    NO2 (UV)

    (01025) mg/m3

    0.1mg/m3

    NH3 (optional)

    (0380) mg/m3

    0.1mg/m3

    CO

    (optional)

    (05000)mg/m3

    0.1mg/m3

    CO2

    (optional)

    (030)%

    0.01%
