AKFC-92G Individual Dust Sampler
  • Product name:AKFC-92G Individual Dust Sampler
  • Order number:
  • Model:
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction

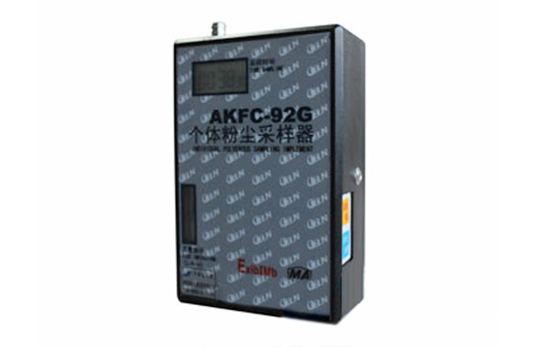

    AKFC-92G individual dust sampler is an instrument for measuring the average concentration of dust in the air in a work class. The instrument consists of air pump, digital timer, constant flow circuit, undervoltage protection circuit, safety power supply, etc. The instrument is equipped with a set of micro dust pre-catchers, which can separate respiratory dust and coarse powder dust that are harmful to human body, and its separation efficiency conforms to the internationally recognized "BMRC" curve standard. The sampler shell is made of flame-retardant ABS engineering plastic, and has been treated with moisture-proof and anti-static.



    It is convenient for on-site use, especially suitable for use in the working environment containing explosive dangerous gas.



    2. Product parameters



    1. Sampling flow: 2L/min

    2. Negative suction pressure: >5000Pa

    3. Load capacity: >2000Pa

    4. Dust collection range: all dust, respirable dust

    5. Continuous working time: >10h

    6. Explosion-proof form: mine intrinsically safe (iI)

    7. Noise: <60dB(A)

    8. Environmental conditions: Temperature: 0~35

    Relative humidity: <95%RH

    9. Dimensions: 120*80*42 (mm)

    10. Weight: 450g

    3. Product Features



    This product has the characteristics of compact structure, small size, light weight, automatic timing, intuitive flow display, safety and reliability.
