Smoke detector
Moisture content tester
Moisture content tester
Moisture content tester JCY-3022
  • Product name:Moisture content tester JCY-3022
  • Order number:
  • Model:JCY-3022
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction

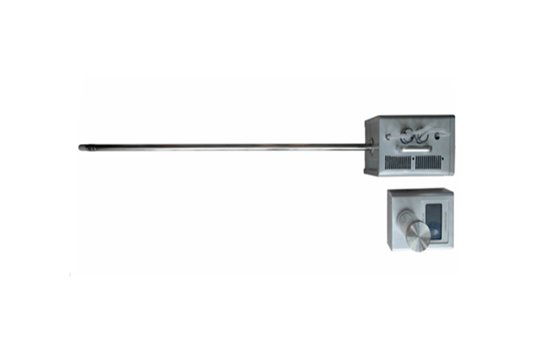

    JCY-3022 moisture content tester uses gravimetric method to measure the moisture content of flue gas from fixed pollution sources. The tester is mainly composed of a flue gas moisture content sampling gun and a flue gas moisture content weighing module. The front end of the moisture content sampling gun is heated, and the rear end is cooled at the dry moisture absorption pipe to ensure that the moisture in the flue gas is completely absorbed in the moisture absorption pipe; the smoke moisture content weighing module weighs the moisture absorption pipe before and after sample collection and wirelessly After receiving the sampling data of the sampling tube, the moisture content data can be obtained through the automatic calculation of the sampling data and the weighing data.


    2. Product parameters


    The main parameters

    parameter range

    The main parameters

    parameter range

    Moisture content test range

    0~60%

    Moisture content resolution

    0.01%

    sampling time

    1~10min

    hygroscopic agent

    Silica Gel

    Flow range

    (0.5~2)L/min

    Supporting power supply

    DC24V/10A

    Weighing resolution

    0.001g

    Weighing accuracy

    0.01g

    Sampling gun heating temperature

    120 ℃

    Operating temperature range

    0~200 ℃


    3. Product Features


    The national standard method for measuring moisture content by gravimetric method is accurate and reliable, and can be used to calibrate the sensor method moisture content tester.
    It can adapt to a wide range of working conditions and can be used in complex working conditions such as high temperature. The absorption tube has a refrigeration function to ensure that the water vapor can be completely absorbed in the moisture absorption tube.
    The on-site operation is simple, and the data can be obtained in 5-10 minutes. When the humidity is greater than 10%, the sampling can be ended in 1 minute, and the moisture content can be measured.
    The moisture content sampling gun is heated to ensure that the water passes through the bong in the state of steam, and the cooling at the moisture absorption pipe ensures that the water vapor is completely absorbed.
    Wireless data transmission is adopted between the moisture content sampling tube and the moisture content weighing module, and the sampling standard volume is transmitted to the weighing module wirelessly
    . The standard volume, the moisture content is automatically calculated.
    The 1um titanium filter element completely filters the particulate matter in the flue gas.
