Sampling gun

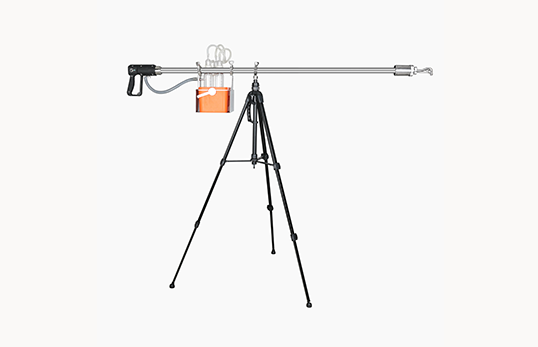

JC-YQ-09 Hydrochloric acid fog sampling gun for fixed pollution source
  • Product name:JC-YQ-09 Hydrochloric acid fog sampling gun for fixed pollution source
  • Order number:
  • Model:JC-YQ-09
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product overview
    The collected gas passes through a gun body lined with a tetrafluoroethylene tube heated at a constant temperature, passes through a tetrafluoroethylene membrane filter, and then passes through an impact absorption bottle to collect solid particulate chloride and gaseous chloride respectively.
    2. Main Features
    The gun body is heated at a constant temperature and the temperature can be adjusted, which can be used to collect hydrochloric acid mist, chloride, etc.
    Lined with tetrafluoroethylene tube, filtered by PTFE membrane filter
    Equipped with plastic heating and cooling box, stainless steel can be customized
    Adopt DC24V heating to ensure the safety of operators
    3. Main parameters
    Working power supply: DC24V/10A
    Sampling gun heating temperature: 0-200 ℃ adjustable
    Sampling tube length: 1.5 meters (can be customized to lengthen)
    Supporting power supply: DC24V /10A
    Membrane filter: 0-120℃ adjustable
    Weight: 2KG
