1. Product overview

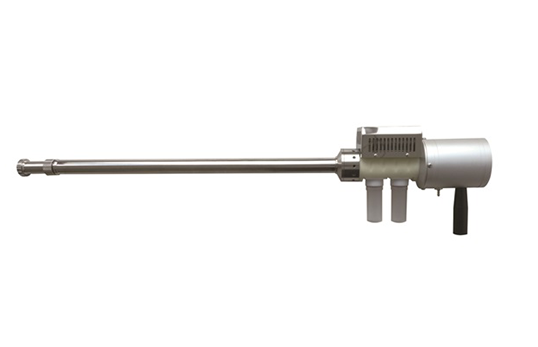

The intelligent flue gas pre-processor is a professional equipment used for the pre-treatment of the measured flue gas during flue gas sampling. It integrates dust filtering, heating, condensation, water removal and mist filtering. Low gas interference loss rate and other characteristics. It can effectively improve the measurement accuracy of the flue gas analyzer, reduce the influence of interference, and effectively prolong the service life of the electrochemical sensor. It can be used with any manufacturer's flue gas tester.

2. Main features

The preprocessor has the function of automatic constant temperature heating in the whole process. The front end of the processor is equipped with a built-in heating device, and the heating temperature can be adjusted to effectively prevent the generation of condensed water.

The rear end of the preprocessor is equipped with a cooling and dehumidification module, with two-stage condensation, which is suitable for high humidity and low flue gas concentration conditions.

Built-in multi-stage filter effectively eliminates the effect of particulate matter, water and sulfur trioxide on results

Equipped with high-power electronic refrigeration module, good cooling effect and large temperature difference

Integrated design, easy to carry and operate

Made of corrosion-resistant stainless steel (customized titanium alloy) material with anti-adsorption function, suitable for a variety of complex working conditions

3. Technical indicators

Main parameter: parameter range

Heating temperature: 120°C (adjustable from 60 to 160°C)

Refrigeration temperature: 4°C (adjustable from 0 to 9°C)

Ambient humidity: (5～40)℃

Preheating time: about 10min

Power supply: AC 220V±10%, 50HZ

Weight: about 4kg

Power consumption: <200W
