product description

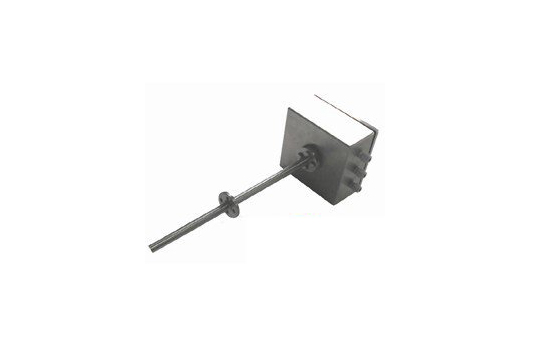

JCY-100 Online High Temperature Humidity Meter, also known as High Temperature Moisture Meter or High Temperature Dew Point Meter, is used to measure the humidity of flue gas emitted by pollution sources and convert the wet flue gas concentration into dry flue gas concentration accordingly. It can also be used for industrial online humidity monitor. The probe rod hygrometer has a built-in high-precision capacitive digital temperature and humidity sensor. This product has reached the relevant technical indicators through the rigorous engineering calibration, testing, and aging process. It can be widely used in thermal power plants, waste incineration plants and other environments to monitor and measure humidity. Easy to operate, wide measuring range and high precision, it is an ideal humidity measuring instrument.

The main parameters

Measuring range: 0~100% (absolute humidity), 0~200℃ (temperature)

Measurement accuracy: ±1%FS

Response time: >10 seconds (T90)

Flue gas temperature limit: >180℃

Ambient temperature: 0-50℃

Humidity sensitive capacitor life: <3 years

Output signal: two channels of 4~20mA (load 250 ohms) and one channel of RS485

Humidity alarm output: switch output, contact power capacity is AC220V0.3A

Power: 220VAC+/-20%

Weight: about 10KG (depending on the length of the probe rod)

Power: 40W

main feature

Imported core components, high performance index and high reliability

The probe has a heat tracing function to prevent the condensed water from the flue from damaging the humidity sensitive capacitor and thermal resistance.
