Flue gas moisture

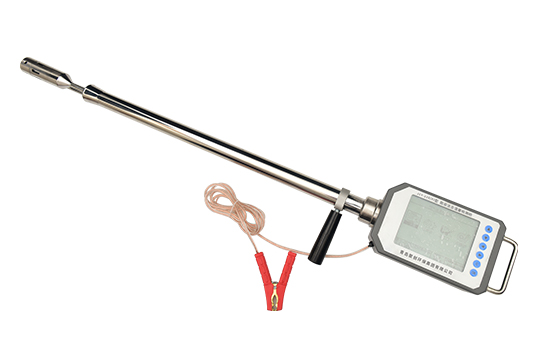

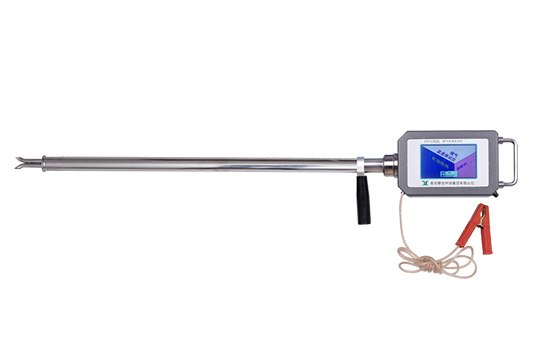

JCY-13S(X) type resistance-capacitance method moisture content/multi-function working condition detection gun
  • Product name:JCY-13S(X) type resistance-capacitance method moisture content/multi-function working condition detection gun
  • Order number:
  • Model:JCY-13S(X)
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc
  • Product Introduction
  • 1. Product overview



    The multi-function flue gas humidity detector (hereinafter referred to as the instrument) is a high-precision portable integrated flue gas humidity and flow rate detector. The instrument adopts imported sensors, and has its own temperature and pressure compensation correction. It has the advantages of wide operating temperature range, etc. It is widely used in the determination of parameters such as flue gas humidity, flue gas flow rate, flue gas flow, standard dry flow, dynamic pressure, static pressure and flue temperature of boilers, kilns and various exhaust ducts. .



    Scope of application



    This instrument uses the resistance-capacitance method to measure the moisture content in the flue gas, and the S-type pitot tube method to measure the flue gas flow rate in the pipeline. It is widely used in environmental protection, occupational health, labor, safety supervision, military, scientific research, education and other fields.



    2. Technical characteristics



    Using original imported humidity sensor, high measurement accuracy, corrosion resistance and long service life;



    Imported high-precision differential pressure sensor is adopted, with small sensor drift and high measurement accuracy;



    The original temperature and humidity correction and compensation algorithm is adopted to eliminate the influence of flue temperature and pressure on the measurement results, and the measurement accuracy is higher;



    Built-in rechargeable lithium battery, one charge can work continuously for more than 4 hours;



    Double-layer dust filtration on the sensor surface effectively protects the measurement results from the influence of dust;



    The sensor surface has a heating function to prevent condensation on the sensor surface and effectively protect the measurement results;



    Adopt integrated design to reduce external interference and easy to use;



    Automatically calculate parameters such as the average flow rate, average pressure, and flue gas flow of the gas.



    With automatic zero point correction, software calibration function to ensure measurement accuracy;



    With the function of flue distribution, it can automatically recommend the number of measurement points and the distance between the measurement points;



    Large-capacity data storage, can store 500 sets of data files;



    5-inch bright color display screen, beautiful interface, human-machine interface adopts touch screen operation mode;



    Built-in bluetooth module, can print data with bluetooth printer.



    3.  Technical indicators



    Technical indicators

    parameter range

    Resolution

    Accuracy

    moisture content

    (0 to 60)%

    0.1%

    not more than ± 2.0%

    flue gas pressure

    (0 to 2 0 00)Pa

    0.1Pa

    not more than ± 2.0%

    flue gas static pressure

    (-35 ~+35)kPa

    0.01kPa

    not more than ± 2.0%

    flue gas temperature

    (0 to 400) °C

    0.1 ℃

    not more than ± 2 ℃

    atmospheric pressure

    (60 to 130) kPa

    0.01kPa

    Not more than ± 500Pa

    Flue gas flow rate

    (0 to 45) m/s

    0.1m/s

    not more than ± 5.0%

    Measured flue gas temperature

    < 180 ℃ (Note: The instrument cannot be used under conditions above 180 ℃)

    Response time

    <30S

    Sensor heating temperature

    ( 40 ~120 )℃

    Sampling tube length

    0.8 meters (can be customized)

    Machine power consumption

    <40W

    Operating temperature

    (-20 ~+60) ℃

    Full battery working time

    >4H ( built-in lithium battery )

    Working power

    DC29.4V 3A

    Dimensions (L×W×H)

    1080mm * 130mm * 85mm
