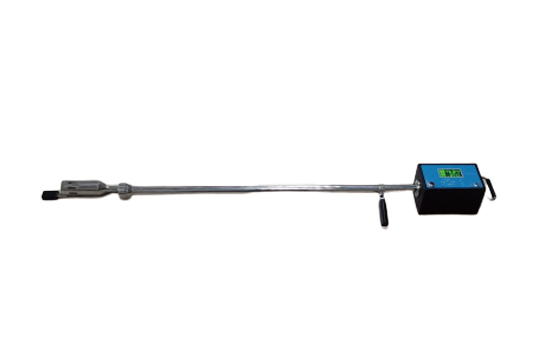

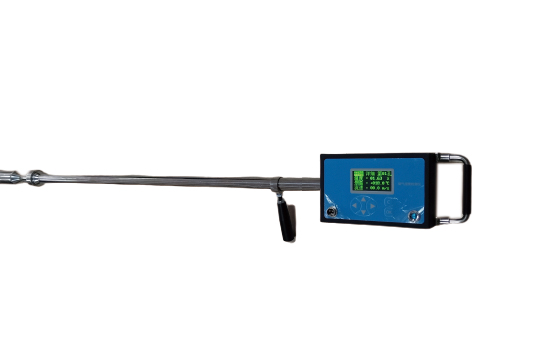

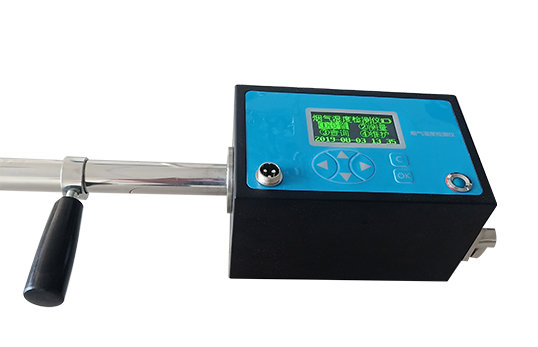

JCY-13S Multifunctional Flue Gas Humidity Detector | Portable Flue Gas Humidity Detector
  • Product name:JCY-13S Multifunctional Flue Gas Humidity Detector | Portable Flue Gas Humidity Detector
  • Order number:
  • Model:JCY-13S
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc
  • Product Introduction

  • 1. Product introduction


    JCY-13S multi-function flue gas humidity detector (hereinafter referred to as the detector) is a high-precision portable integrated flue gas humidity and flow rate detector. The instrument uses the humidity sensitive capacitance method to measure the moisture content in the flue gas. The S-type pitot tube method measures the flue gas flow rate in the pipe, and can measure the flue gas flow rate, flue gas flow rate, standard dry flow rate, dynamic pressure, static pressure and flue gas temperature of various boilers, industrial furnaces and exhaust pipes. Detection, widely used in environmental protection, occupational health, labor, safety supervision, military, scientific research, education and other fields.


    2. Product parameters



    Technical indicators

    parameter range

    Resolution

    Accuracy

    humidity

    (0 to 60)%

    0.01%

    not more than ± 2.0%

    flue gas pressure

    (0 to 2000) Pa

    0.01Pa

    not more than ± 2.0%

    flue gas static pressure

    (-35 to 35) kPa

    0.01 kPa

    not more than ± 4.0%

    flue gas temperature

    (0 to 600) °C

    1 ℃

    not more than ± 3 ℃

    atmospheric pressure

    (50 to 110) kPa

    0.1 kPa

    not more than ± 4.0%

    Flue gas flow rate

    (2 to 45) m/s

    0.1 m/s

    not more than ± 5.0%

    working smoke temperature

    Less than 180 ℃ (Note: The instrument cannot be used in conditions above 180 degrees)

    Dimensions (L×W×H)

    1250mm * 95mm * 50mm

    Response time

    <30S

    temperature control

    ( 0-160 )℃

    Sampling tube length

    1.25 meters (can be customized)

    Machine power consumption

    <60W

    Operating temperature

    ( -20-60 )℃

    Operating Voltage

    Built-in battery or AC220/DC24 voltage adapter



    3.Product Features



    1. The original imported humidity sensor is used, with high measurement accuracy, corrosion resistance and long service life;

    2. Imported high-precision differential pressure sensor is adopted, the sensor drift is small, and the measurement accuracy is high;

    3. The original temperature and humidity correction and compensation algorithm is adopted to eliminate the influence of flue temperature and pressure on the measurement results, and the measurement accuracy is higher;

    4. Built-in rechargeable lithium battery, one charge can work continuously for more than 3 hours;

    5. Double-layer dust filtration on the sensor surface effectively protects the measurement results from the influence of dust;

    6. The sensor surface has a heating function to prevent condensation on the sensor surface and effectively protect the measurement results;

    7. Adopt integrated design to reduce external interference and easy to use;

    8. Automatically calculate the average flow rate, average pressure, flue gas flow and other parameters of the gas.

    9. With automatic zero point correction and software calibration function to ensure measurement accuracy;

    10. With the function of flue distribution, it can automatically recommend the number of measurement points and the distance between the measurement points;

    11. Large-capacity data storage, can store 600 sets of data files;

    12. Large-size, wide-temperature high-brightness display;

    13. Built-in bluetooth module, optional bluetooth printer for data printing.
