1. Product introduction

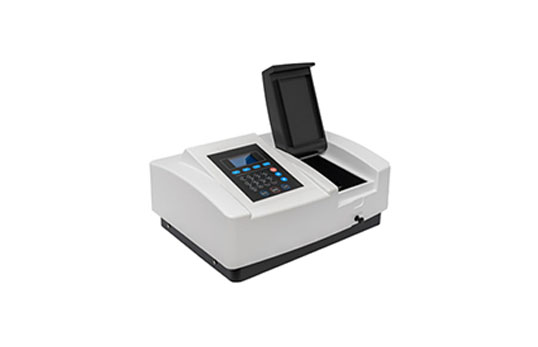

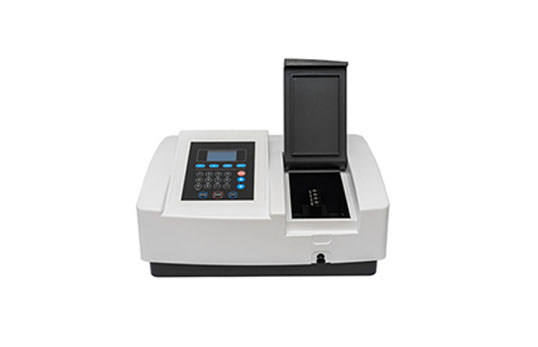

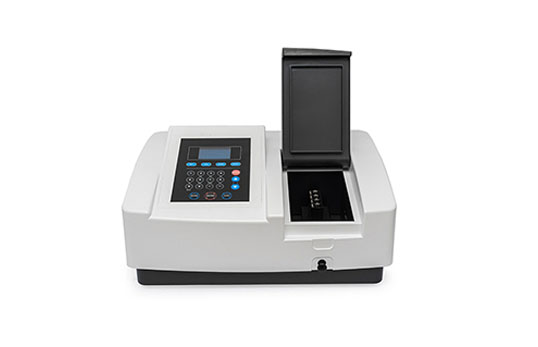

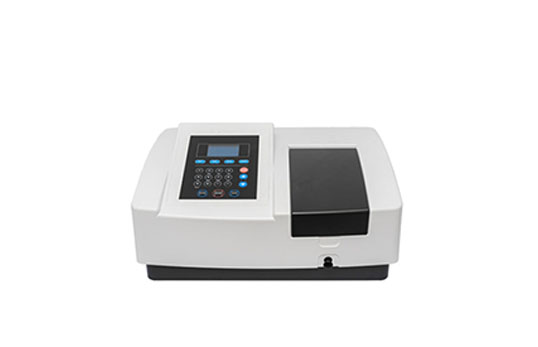

1. The V729 large-screen scanning visible spectrophotometer adopts the latest arm system, built-in Chinese and English dual operating systems, and can store and transfer data through the USB interface.

2. Powerful functions, the host can independently complete the functions of photometric measurement, quantitative measurement, spectral scanning, kinetics, DNA/protein testing, multi-wavelength testing and data printing.

3. The instrument adopts 320`240 dot matrix high-brightness 6 liquid crystal display, which directly displays the scanning map, and the screen interface is simple and convenient to use.

4. Special optical system design, high-performance 1200/mm grating and imported receiver ensure that the instrument has excellent performance indicators.

5. Socket type neon lamp and tungsten lamp design, free optical debugging after lamp replacement.

6. 24-bit high-speed, high-precision A/D conversion, the instrument has high precision and fast response.

7. The large sample room can accommodate 5-100mm cuvettes of various specifications.

8. It can be directly connected to a printer to print maps and experimental data.

9. Direct online operation through scanning software.

The V729 large-screen scanning visible spectrophotometer can be equipped with a disc rotating automatic eight-connected sample rack, which has good reliability and a center light spot (compared to the double-row automatic eight-connected rack), so the instrument has high photometric accuracy.

2. Product parameters

1. Wavelength range: 320-1100nm

2. Wavelength accuracy: ±0.5nm

3. Spectral bandwidth: 2nm

4. Wavelength repeatability: ≤0.2nm

5. Transmittance accuracy: ≤0.3%T

6. Repeatability of transmittance: ≤0.1%T

7. Stray light: ≤0.05%T

8. Baseline linearity: ±0.002A

9. Noise: 0.001A (500nm)

10. Stability: ±0.001A/h @500nm

11. Working way: T, A, C

12. Display mode: 320*240 large-screen LCD display

13. Display range: 0-200%T, -0.3-3A

14. Display system: 4-digit liquid crystal LED display

15. Wavelength setting method: high, medium and low three gears are optional

16. Wavelength drive: automatic

17. Detector: imported silicon photodiode

18. Output mode: USB interface

19. Energy (light source): imported tungsten lamp, imported deuterium lamp

20. Power supply: AC 220/50Hz or AC 110/60Hz

21. Net weight: 16Kg

3. Product Features

The V729 large-screen scanning visible spectrophotometer can easily perform photometric analysis, quantitative analysis, kinetic testing, spectral scanning, multi-wavelength testing, and DNA/protein analysis through simple parameter settings.
