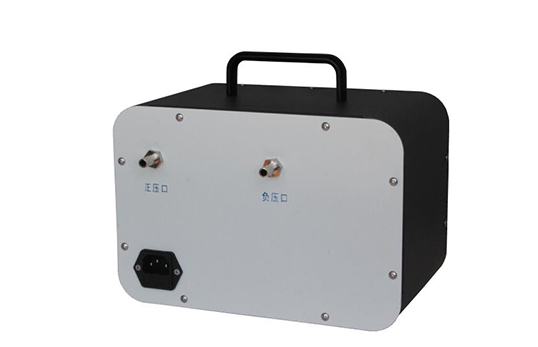

JC-DP-02 Negative pressure adjustable oil-free vacuum pump
  • Product name:JC-DP-02 Negative pressure adjustable oil-free vacuum pump
  • Order number:
  • Model:JC-DP-02
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    Vacuum pump is an important filtration supporting equipment to improve filtration efficiency and strengthen degassing effect. In order to ensure that the filter medium is not polluted, oil-free diaphragm vacuum pumps are generally used. This type of pump forms a vacuum through the reciprocating motion of the rubber diaphragm. The vacuum pressure is generally about 0.08Mpa (single stage). The key to improving the filtration speed is The exhaust volume per unit time and the flow index of the vacuum pump are especially prominent when the filter volume is large and the medium viscosity is high when the particles block the filter membrane.


    2. Product parameters


    model

    JC-ZKB-30

    JC-DP-01 Negative pressure adjustable type

    JC-ZKB-60

    JC-DP-02 Negative pressure adjustable type

    power supply

    220V/50Hz

    220V/50Hz

    220V/50Hz

    220V/50Hz

    negative pressure

    ≥ 0.08Mp

    ≥ 0.08Mp

    ≥ 0.08Mp

    ≥ 0.08Mp

    positive pressure

    ≥ 30Psi

    without

    ≥ 30Psi

    without

    No-load flow

    20L/min

    20L/min

    40L/min

    40L/min

    load noise

    50 dB

    50 dB

    50 dB

    50 dB

    power

    60W

    60W

    120W

    120W

    net weight

    4.2kg

    4.2kg

    4.8kg

    4.8kg

    Packing Net Weight

    4.5kg

    4.5kg

    5.1kg

    5.1kg

    Dimensions

    245*145

    *220mm

    245*145

    *220mm

    245*145

    *220mm

    245*145

    *220mm

    Package dimensions

    315*220

    *305mm

    315*220

    *305mm

    315*220

    *305mm

    315*220

    *305mm


    3. Product Features


    1. The structure is compact and reasonable, the volume is small, the vacuum degree is high, and the noise is low.

    2. The pump is used with filter bottle, multi-stage filter and solid phase extraction device to achieve the ideal pumping effect.

    3. It is suitable for suctioning various liquids and decompressing and vacuuming containers. It is an ideal negative pressure equipment for laboratory suction and vacuuming.

    4. According to the needs of the operator, it can be matched with solvent filters, solid phase extraction devices and other equipment.
