Product name：XSP series-10CA trinocular microscope -
Order number： -
Model：XSP-10CA -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
- Details Page
-
1. Product introduction
XSP series-10CA trinocular microscope can be used for research work such as chemistry in school laboratories and for analysis and testing in small units such as agriculture, forestry, fishery and aquaculture.
It applies the microscopic magnification technology of optical principle, makes the collected fine samples into specimens, and conducts microscopic magnification and observation.
It is mainly used to amplify tiny objects into instruments that can be seen by the naked eye.
XSP-10CA has been widely recognized by various application fields and levels for its reliable stability and superior cost performance.
2. Product parameters
model
lens barrel
Monocular
binocular
Monocular
Three eyes
Condenser and diaphragm
Diaphragm turntable 6 holes
Abbe Condenser Variable Bars and Filters
Abbe Condenser Variable Bars and Filters
Abbe Condenser Variable Bars and Filters
eyepiece
16X

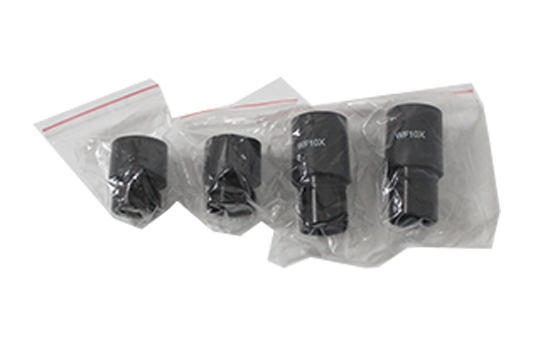

Wide-angle eyepiece WF10X, Huygens eyepiece H16X
Wide-angle eyepiece WF10X, Huygens eyepiece H16X
Wide-angle eyepiece WF10X, Huygens eyepiece H16X
Achromatic Objectives
4X, 10X, 40X
10X, 40X(S), 100X(S)
10X, 40X(S), 100X(S)
10X, 40X(S), 100X(S)
illumination
Halogen lamp 6V/20W
Halogen lamp 6V/20W
Halogen lamp 6V/20W
LED light source or halogen light
power supply
natural light
light source
light source
light source
3. Product Features
1. The instrument is small in size, light in weight and easy to operate.
2. Complete functions, clear imaging and high cost performance -
