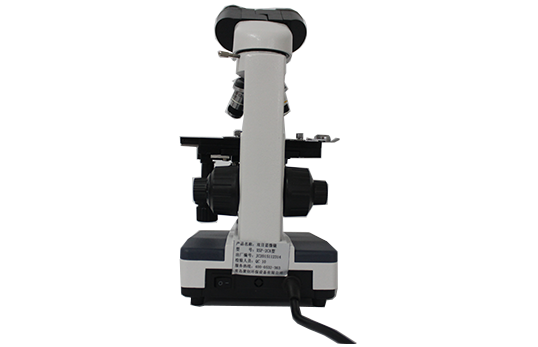

XSP series-3CA monocular microscope
  • Product name:XSP series-3CA monocular microscope
  • Order number:
  • Model:XSP-3CA
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • Details Page

  • 1. Product introduction


    1. Product principle


    XSP series-3CA monocular microscope applies the microscopic magnification technology of optical principle, makes the collected fine samples into specimens, and conducts microscopic magnification and observation.


    2. Product use


    It is mainly used to amplify tiny objects into instruments that can be seen by the naked eye.


    3. Product Description


    This is a reasonable design, compact structure, and easy to use microscope.


    2. Product parameters


    serial number

    Product number

    Monocular biological microscope XSP-3CA

    1

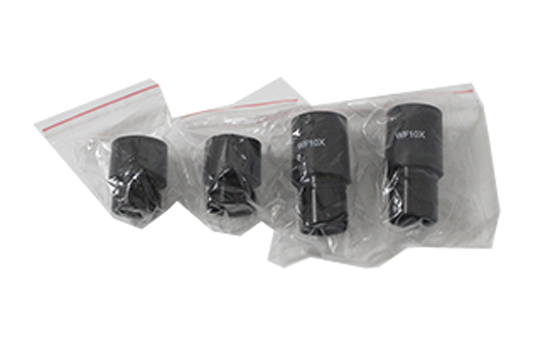

    flat field eyepiece

    WF10X/ф18, WF16X/ф11

    2

    Achromatic Objectives

    4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring)

    3

    total magnification

    40X-1600X

    4

    Monocular viewing head

    45° tilt and 360° rotation

    5

    converter

    Four holes (outward-facing ball positioning)

    5

    Coarse and fine focus range

    15mm fretting grid value: 2um coarse fretting coaxial focusing limit

    6

    Stage

    Double-layer mechanical size 125X115mm moving range 70X30mm vernier grid value 0.1mm

    7

    Mechanical barrel length

    160mm

    8

    condenser

    1.25NA Abbe condenser, variable aperture with color filter (up and down)

    9

    illumination

    Brightness adjustable halogen tungsten bulb 6V20W

    10

    Instrument weight

    Net weight 3.5kg Gross weight 5.5kg

    11

    Instrument size

    Instrument size 18X29X39(cm) Package size 26X33X49(cm)


    3. Product Features


    1. XSP series-3CA monocular microscope instrument is small in size, light in weight and easy to operate.


    2. Complete functions, clear imaging and high cost performance.


    3. Total magnification: total magnification: 40X-1600X.
