Product name：JC-GX series High temperature constant temperature bath -
Order number： -
Model：JC-GX -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction

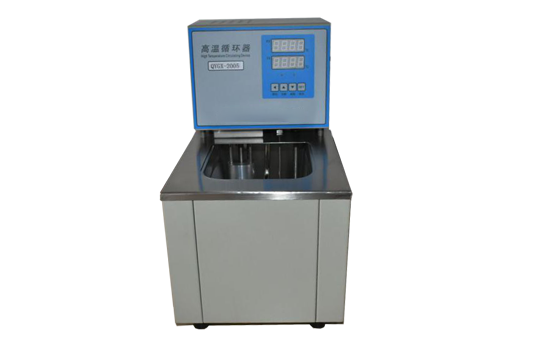

JC-GX series high temperature constant temperature tank (high temperature circulator) uses oil as the heating medium, and the oil in the tank is pumped out of the machine through a stainless steel circulating pump to establish a second constant temperature field. The instrument is equipped with an external circulation interface, which can be connected with the instrument It is widely used in distillation, drying and concentration.
2. Product parameters
model
Temperature range (℃)
Volatility (°C)
Working slot size (mm 3 )
Groove depth (mm)
Flow (L/min)
Tank volume (L)
JC -GX-2005
Room temperature ~300
±0.2
240×150×150
150
8
5
JC -GX-2010
280×190×200
200
10
10
JC -GX-2015
280×250×200
200
15
15
JC -GX-2020
280×250×280
280
15
20
JC -GX-2030
400×330×230
230
15
30
JC -GX-2050
500×330×300
300
15
50
3. Product Features
● Microcomputer intelligent control system, rapid heating, stable temperature and easy operation.
● Adopt imported sensors, with high temperature control accuracy.
● Dual use of water and oil: high temperature can reach 300℃ .
●LED double windows display temperature measurement value and temperature setting value separately, and the touch button is easy to operate.
● The flow rate of the external circulation pump is large, up to 15L/min .
● Pour in cold water to achieve rapid cooling inside the system, which is suitable for temperature control of exothermic reactions at high temperatures.
● Suitable for double jacketed reactor, chemical pilot scale reaction, semiconductor industry and high temperature distillation and drying.
-
