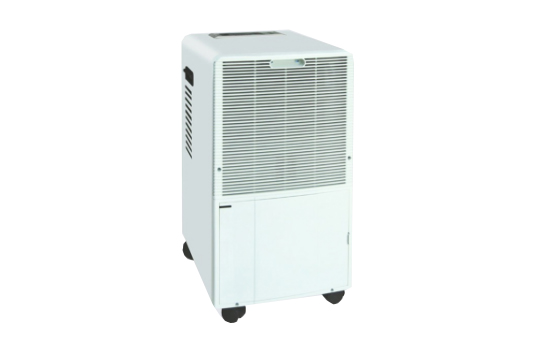

Product name：JC-CS58L Laboratory Dehumidifier -
Order number： -
Model：JC-CS58L -
Stock status：Laboratory Dehumidifier -
Logistics：Laboratory Dehumidifier
- Product Introduction
-
1. Product introduction
The dehumidifier consists of a compressor, two devices (heat exchanger and condenser), a fan, a water tank ( drain pipe ) , a casing and a controller. Its working principle is: the fan sucks humid air into the machine, and the compressor cools The system lowers the surface of the condenser to below the dew point temperature of the air. At this time, when the humid air passes through the condenser , the water in the air will be decomposed and attached to the surface of the condenser (Note: Just like in summer, we take out a bottle of Water, there will be a layer of condensed water on the outside of the bottle for a while), the water will flow along the hydrophilic platinum on the condenser to the water storage tray and then flow to the water tank or drain pipe for discharge , and the dehumidified dry cold air will undergo heat exchange. After the heater is heated, it is discharged out of the machine, and this cycle reduces the indoor humidity.
2. Product parameters
model
JC - CS 58L _
Daily dehumidification
58 liters
power supply
220V/50HZ
power
880W
Defrost method
Automatic defrost
control panel
Microcomputer control
proper temperature
5℃ -38 ℃
humidity control
computer board display
Drainage
Tank or hose straight row
Weight (kg)
28
Machine volume (mm 3 )
330 × 450 × 6 90
Application area
50~80 ㎡
Applicable cubic area
200m³ _
3. Product Features
1. The LED color screen displays the temperature and humidity. The humidity can be set arbitrarily from 10% to 95% . When the set humidity is reached, it will automatically shut down. When the set humidity is higher than the set humidity, it will automatically start and dehumidify, truly realizing full automation.
2. The machine has the function of timing on and off, which can be set arbitrarily from 1-24 hours, which is convenient for users to set on and off when they go out.
3. The machine has the function of automatic fault detection. If there is a fault, the machine will automatically detect the cause and display the corresponding fault code, which is convenient for maintenance.
4. Adopt Ruizhi / Panasonic brand compressor , strong power and strong dehumidification
5. The machine is suitable for low temperature environment and automatic frost, applicable temperature: 5-38 ℃
6. The machine adopts special fan for dehumidifier with high lifespan, which is quiet and low noise.
7. The machine is equipped with universal wheel feet, which is easy to move.
8. Intelligent operation , unique ± 1 humidity setting9.Electronic temperature control defrosting , more thorough and faster defrosting After booting, it will automatically restore to the previous setting state
