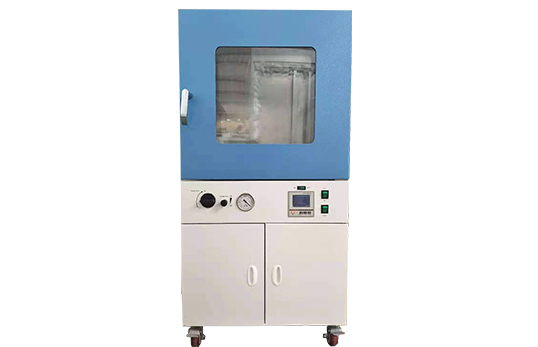

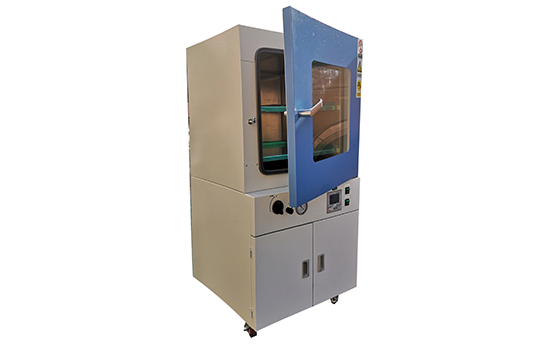

JC-DZS-6090/6125/6210/6500 vertical vacuum drying oven
  • Product name:JC-DZS-6090/6125/6210/6500 vertical vacuum drying oven
  • Order number:
  • Model:JC-DZS-6090/6125/6210/6500
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction

  • 1. Product introduction


    DZS series vacuum drying oven adds vacuum conditions on the basis of high temperature drying, which greatly reduces the boiling point and vapor pressure, provides a dust-free, vortex-free drying process and a mild environment for the test and heating process, and also makes the solvent vapor Easy to collect, discharge or reuse. In addition, storage, heating, testing and drying are all carried out in an environment without oxygen or filled with inert gas, so the experimental samples are not easily oxidized. DZS series vacuum drying ovens are widely used in agricultural scientific research, environmental protection and other research fields for powder drying, baking and disinfection and sterilization of various glass containers. Especially suitable for fast drying of heat-sensitive, oxidative decomposition and complex composition items.


    2. Product parameters


    model

    JC-DZS-6090

    JC-DZS-6125

    JC-DZS-6210

    JC-DZS-6500

    Inner tank size mm

    450*450*450

    500*500*500

    560*600*640

    630*810*845

    Dimensions mm

    610*590*1470

    670*640*1520

    720*820*1750

    790*1030*1855

    structure

    vertical

    vertical

    vertical

    vertical

    heating method

    External heating

    Internal heating

    External heating

    Internal heating

    partition plate

    2

    3 ( independent temperature control)

    3

    4 (independent temperature control)

    Voltage

                 220V

    380V

    Power w

    2800

    2200

    4500

    6000

    studio material

                                    Inner stainless steel

    vacuum gauge

    Imported back mechanical pointer watch

    degree of vacuum

                                    133Pa

    temperature range

                               RT+10~250°

    The benchtop vacuum box does not contain a pump , the vacuum pump can be externally connected, and can be customized according to customer requirements



    3. Product Features


    1. Rectangular studio to maximize the effective volume.


    2. The closed tightness of the box door can be adjusted, and the integrally formed silicone rubber door seal ensures a high degree of vacuum in the box.


    3. The high-performance CPU processing chip and the high-sensitivity, high-precision platinum resistance sensor temperature control system are used to make the temperature control more accurate and the operation more convenient.


    4. With sensor fault alarm, over-temperature alarm, self-diagnosis dynamic control, temperature display correction, parameter memory and timing function up to 9999 minutes.


    5. Optional inert gas port and inert gas flow meter can be installed.
