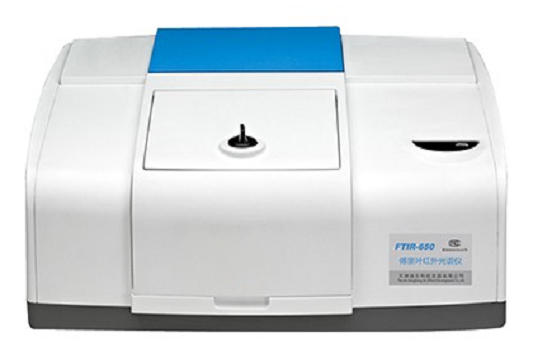

Fourier infrared photometer FTIR-650
  • Product name:Fourier infrared photometer FTIR-650
  • Order number:
  • Model:FTIR-650
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    FTIR-650 Fourier transform infrared spectrometer has the characteristics of stable performance, easy operation, long service life and low maintenance cost. Its product performance and main technical indicators have reached the international level of similar products. Widely used in chemical, petroleum, environmental protection, food, materials, public security, national defense, semiconductor, optics and other fields, it is an indispensable analysis and testing tool for laboratory research and enterprise production .



    2. Product parameters



    name

    parameter

    Product number

    FTIR-650/FTIR-650G

    Spectral range

    4000-400cm -1 /7800-350cm -1

    Resolution

    Better than 1.5cm -1 / Better than 1.0cm -1

    Detector

    Imported pyroelectric detector

    beam splitter

    Germanium-plated KBr substrate with moisture-proof coating

    Scan speed

    Select the corresponding scan speed under computer control

    light source

    Long-life high-intensity air-cooled infrared light source

    signal to noise ratio

    15000:1/30000:1

    (PP value, 4cm -1 , 1 minute background and sample scan, 2100cm -1 )

    power supply

    AC220V/50HZ

    Dimensions

    450mm*350mm*210mm

    weight

    14kg

    data transfer interface

    USB 2.0

    support system

    Windows XP, Windows 7




    3. Product Features


    ( 1) Highly stable optical system


    The integrated design of the optical table, the overall mold forming, the main components are positioned at one time, and no later adjustment is required, which greatly improves the mechanical stability and long-term reliability of the instrument.


    ( 2) High-performance electronic system


    The new 24-bit A/D conversion technology, combined with imported pyroelectric detectors, ensures true and reliable data, real-time acquisition and high-speed transmission.



    ( 3) High-precision optical system


    The one-piece gold-plated corner mirror has good matching consistency of the corner mirror, and the reflective surface is enlarged, which ensures higher luminous flux and high reflectivity; the vertical precision of each surface of the corner mirror is high, and it is free from bonding and will not be affected by the ambient temperature, improving the instrument stability.


    ( 4) Intelligent protection system


    The airtight interferometer design enables quick identification of humidity conditions, which reduces the operator's workload for instrument maintenance, and reminds users to replace the desiccant in time through the obvious color change to solve the hidden dangers in the use of infrared. The desiccant can be replaced without opening the cover.


    ( 5) A variety of accessories to choose from


    The process of accessory replacement and experimental installation is simple, and the large sample compartment can easily expand other infrared accessories, such as ATR accessories, gas cells, liquid cells, polarization accessories, etc.


    ( 6) Audit trail function


    The instrument supporting software has the function of "three-level management authority", which meets the testing requirements of the national code.


    ( 7) 3Q certification service


    Provide professional 3Q certification installation services.
