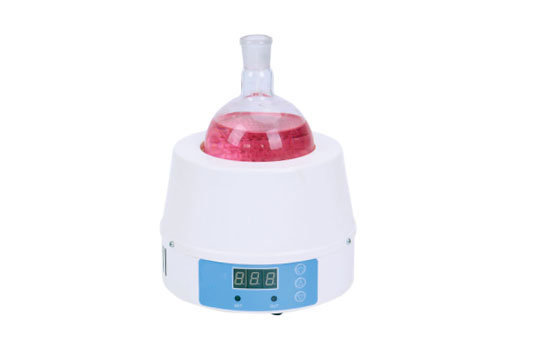

Product name：JC-DRT series electric heating jacket -
Order number： -
Model：JC-DRT -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
This product is an ideal product for laboratory liquid heating in petroleum, chemical, colleges and universities, environmental protection and other industries.
2. Product parameters
product name
Specification (ml)
Power (w)
Inner core size (mm) diameter × depth
Dimensions (diameter × height) (mm)
High operating temperature (℃)
electric heating jacket
100
100
Φ70×40
Φ175×150
380°C (heating element surface temperature)
250
180
Φ95×50
Φ175×150
380°C (heating element surface temperature)
500
250
Φ150×50
Φ200×160
380°C (heating element surface temperature)
1000
300
Φ150×70
Φ240×175
380°C (heating element surface temperature)
2000
500
Φ180×80
Φ280×215
380°C (heating element surface temperature)
3000
600
Φ200×100
Φ289×240
380°C (heating element surface temperature)
5000
1000
Φ245×150
Φ354×270
380°C (heating element surface temperature)
10000
1500
Φ310×175
Φ414×310
380°C (heating element surface temperature)
20000
2500
Φ380×190
Φ489×285
380°C (heating element surface temperature)
50000
6000
Φ480×270
Φ690×475
380°C (heating element surface temperature)
3. Product Features
1. This product adopts high temperature resistant alkali-free glass fiber as insulating material, and seals the nickel-chromium resistance wire in the insulating layer, and weaves it into a hemispherical internal heating heater.
2. The shell is made of high-quality cold-rolled steel plate, and the surface is processed by electrostatic spraying.
3. Large heating area, fast heating, uniform temperature, good heat preservation effect, no open flame and so on.
4. Anti-corrosion, anti-aging, durable, safe and reliable.
5. The shape is novel and beautiful, the operation is simple and the use effect is good.
6. The intelligent type has the advantages of temperature setting, automatic temperature control, digital display temperature, dual sensor temperature measurement, which can measure the inner core temperature and material temperature respectively.
7. Heating method: intelligent instrument temperature control.
