Airflow dryer glas.
instrument airflow dryer
instrument airflow dryer

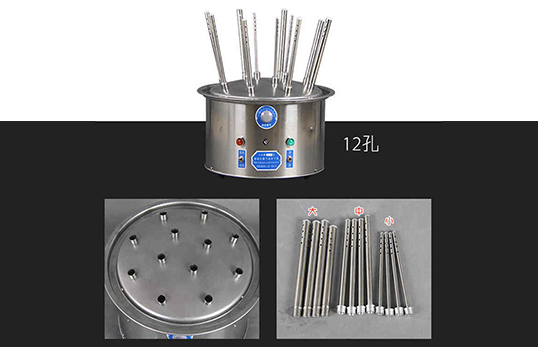

JC-C12/20/30 type glass instrument airflow dryer
  • Product name:JC-C12/20/30 type glass instrument airflow dryer
  • Order number:
  • Model:JC-C12/20/30
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    C-type all-stainless steel glassware airflow dryer is an indispensable drying equipment for various laboratories and laboratories using glassware to dry glassware, also known as glassware dryer, glassware drying Airflow dryer for glass instruments, glass dryer, airflow dryer, test tube dryer, etc. It is suitable for the rapid drying of test tubes, beakers and other glassware in laboratories in colleges and universities, chemical industry, food processing and other fields.


    2. Product parameters


    Product number

    Scope of application

    Duct size

    Temperature range

    Model size mm

    Weight kg

    Power W

    Working voltage V/HZ

    length mm

    Quantity root

    temperature ℃

    Accuracy °C

    Ф400/400

    JC-C12

    800

    220/50

    170/200

    12

    40~120

    ±2

    Ф400/400

    7

    JC-C20

    800

    220/50

    170/200

    20

    40~120

    ±2

    Ф400/400

    7

    JC-C30

    800

    220/50

    170/200

    30

    40~120

    ±2

    Ф400/400

    7


    3. Product Features


    Fast drying operation and energy saving. This product uses a fan to blow out the hot air, and blows it evenly into the upside-down glassware through the air duct, which can complete the drying operation in a relatively short time. The product is equipped with a temperature setting knob, which can dry glassware at a relatively constant temperature, and can limit the temperature so that the equipment can be used normally. Novel design, easy to use. This equipment has a round appearance, small size, light weight, easy to move, and easy to observe and operate when placed on the workbench.


    4.use method


    1. According to the size of the glassware to be dried, connect the air duct of the corresponding specification to the air outlet of the upper cover.
    2. Turn the temperature setting knob to the desired temperature. Connect the power supply and turn on the power switch. Then the cold air indicator green light is on, and the motor works to blow out cold air. Then turn on the hot air switch, the hot air indicator light is red, and the hot air starts to be blown. When the airflow temperature rises to near the set temperature, the hot air indicator goes off and the heating stops (the blower motor continues to work). When the airflow temperature drops below the set temperature, the hot air indicator lights up and the heating continues.
    3. When the glassware is dried, first turn off the hot air switch, wait for the glassware to be blown to cool and then remove it, and make sure that the air blown out is cold air, then turn off the power switch and cut off the power supply.
    Note: It is strictly forbidden to directly turn off the power switch after drying, so as to avoid residual heat remaining in the device and burning out the motor and other components!
