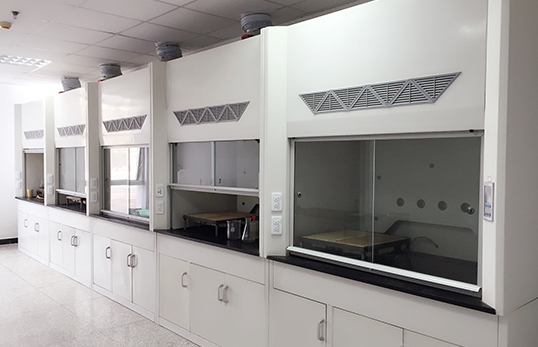

plank fume hood
  • Product name:plank fume hood
  • Order number:
  • Model:
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • Product introduction


    1. Countertop: Optional solid core physicochemical board/epoxy resin board/ceramic board, etc.

    2. Overall: It is made of 18mm melamine board, and the surrounding is processed by the waterproof edge sealing process of the automatic edge sealing machine.

    3. Deflector: The special acid and alkali resistant deflector for fume hood is used, and the 5mm thick white surface SOLID PHENOLICRESIN COMPOSITE LINER laminated chemical board is installed. The installation position and angle need to make the exhaust distribution even and without dead angle. Under standard conditions, the proportion of exhaust air above the air deflector and the air outlet at the middle and bottom is about 50±10% to ensure that gases of different specific gravity can be effectively eliminated , In addition, it has a manually adjustable air volume ratio design, which can increase the air volume ratio of the middle and lower air outlets to more than 80% to meet different experimental needs.

    4. Window: 5mm thick professional explosion-proof glass is used, and the window is designed with uninterrupted balance and concealed structure. The counterweight of the window is balanced to ensure the smooth opening and closing of the window. The window can slide up and down freely and can stay at any position. At the vertical closure of the window of the fume hood and the work surface of the fume hood, an airflow grille is designed to prevent gas from overflowing. The convection gas caused by the temperature difference overflows to ensure that when the window is closed and the fan is still working, the working area in the cabinet will not generate negative pressure.

    5. Window handle: The steel handle is made of epoxy resin powder sprayed and painted, which is beautiful and generous.

    6. Suspension system: The diameter of 5mm PVC-coated steel cable is used, which has the characteristics of anti-rust and corrosion resistance.

    7. Socket: It adopts multi-functional waterproof three-hole socket and is equipped with overload protection switch.

    8. Hinge: The brand damping hinge is made of anti-corrosion alloy material, which meets the international hardware industry standard.

    9. Lighting: use fluorescent lamps to ensure that the working surface is not lower than the brightness standard of 450Lux, does not come into contact with the gas in the cabinet, and is easy to replace.

    10. Others: It can cooperate with the installation and daily maintenance of water, electricity and gas.
