Vacuum drying oven
vacuum drying oven
vacuum drying oven

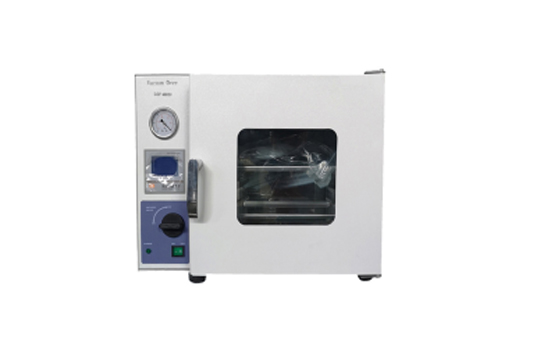

JC-DZK-6025/6050/6250 desktop vacuum drying oven
  • Product name:JC-DZK-6025/6050/6250 desktop vacuum drying oven
  • Order number:
  • Model:JC-DZK-6025/6050/6250
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 选型指南
  • 1. Product introduction


    DZK series vacuum drying oven adds vacuum conditions on the basis of high temperature drying, which greatly reduces the boiling point and vapor pressure, provides a dust-free, vortex-free drying process and a mild environment for the test and heating process, and also makes the solvent vapor Easy to collect, discharge or reuse. In addition, storage, heating, testing and drying are carried out in an environment without oxygen or full of inert gas, so the experimental samples are not easily oxidized. DZK series vacuum drying ovens are widely used in agricultural scientific research, environmental protection and other research fields, for powder drying, baking and disinfection and sterilization of various glass containers. Especially suitable for fast drying of heat-sensitive, oxidative decomposition and complex composition items.


    2. Product parameters


    model

      JC-DZK-6025

    JC-DZK-6050

    JC-DZK-6250

    Inner tank size mm

    300*300*275

    415*370*345

    700*600*600

    Dimensions mm

    605*490*450

    730*560*570

    1050*760*910

    structure

    desktop

    desktop

    desktop

    heating method

    External heating

    External heating

    Internal heating

    partition plate

    1

    2

    3

    Voltage

                 220V

    380V

    Power w

    550

    1400

    5000

    studio material

                                    Inner stainless steel

    vacuum gauge

    Imported back mechanical pointer watch

    degree of vacuum

                                    133Pa

    temperature range

                               RT+10~250 °

    The benchtop vacuum box does not contain a pump , the vacuum pump can be externally connected, and can be customized according to customer requirements


    3. Product Features


    1. The cuboid studio makes the effective volume reach large

    2. Double-layer tempered glass door, observe the objects in the studio at a glance

    3. One-time casting high temperature resistant silicone rubber door seal

    4. The lock-type elastic adjustment door lock ensures a good vacuum degree

    5. The studio adopts stainless steel plate

    6. Light touch interlocking double solenoid valve to achieve vacuum pumping and pressure relief

    7. With LED display, temperature correction, over-temperature alarm and other functions
